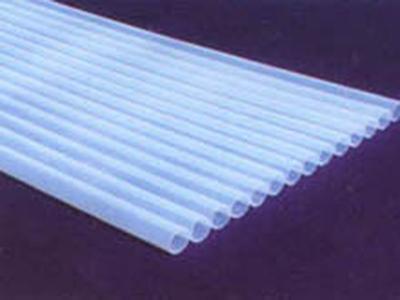

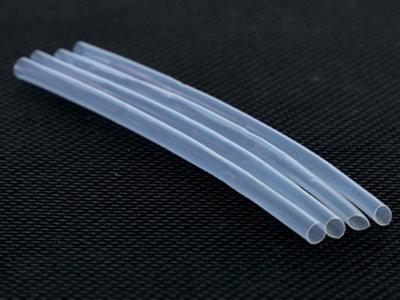

PFA Heat Shrink Tubing

Model: CYG-PFA

Material: PFA

Operating temperature: -65℃-260℃

Minimum full recovery temperature: 350℃

Shrink ratio: 1.3:1

Application
PFA has an excellent high-temperature performance, chemical resistance, high insulation and excellent mechanical properties. It is designed to provide insulation and mechanical protection in severe chemical and thermal environments. PFA heat shrink tubing is also widely used for areas where there are requirements for a superior clarity, flexibility, and a wider range of continuous operating temperatures.

Standard: AS23053/11

Size
Size ID as supplied (MM) ID after recovery (MM) Wall after recovery (±0.1) (MM)0.2
3.5 3.8±0.2 2.7 0.2
4.0 4.5±0.2 3.3 0.2
5.0 5.5±0.2 4.3 0.2
6.4 7.0±0.2 5.1 0.2
7.9 8.0±0.2 6.0 0.2
10.0 10.6±0.2 7.4 0.3
12.0 12.7±0.2 8.8 0.3
14.0 14.5±0.2 10.7 0.3
17.0 17.3±0.2 12.8 0.4
19.0 19.0±0.2 16.5 0.5

Remarks: Special sizes are available upon request, as are customization services.

Specifications
Items Test methods Specification
Density ASTM D 792 2.12-2.17
Shrink ratio 1.3:1
Operation temperature℃ -65--260
Min. shrink temperature℃ 220
Dielectric strength ASTM D 2671 ≥ 19.7 kV/mm
Longitudinal change ≥ +10%
Water absorption % ASTM D 570 ＜0.01%
Tensile strength ASTM D 638 ≥13.8MPa
Elongation ASTM D 638 ≥200%
Volume resistivity ASTM D 876 ≥1017Ω.cm
Low temperature flexibility -65±1℃ No cracking
Flammability UL224 PASS
