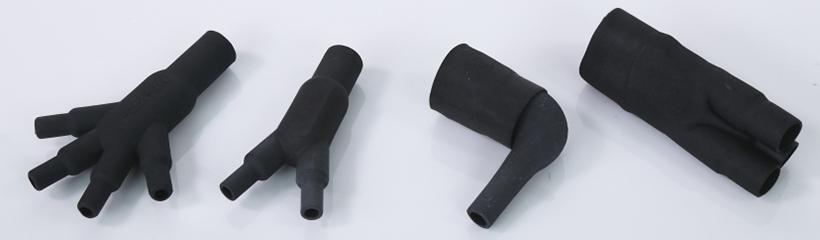

Heat Shrink Molded Shapes

Model: CYG-HB

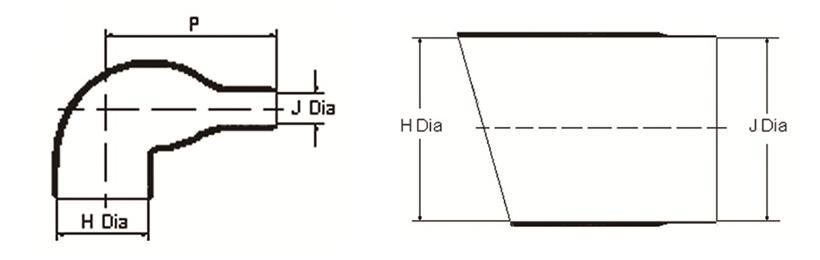

L type product design and Size
P/N Size as supplied Size after recovery
H min J Min H max HW J max JW P
CYG-HB-L2 24.0 24.0 9.0 1.5±0.1 4.5 1.4±0.1 30.0
CYG-HB-L3 28.5 28.5 14.0 1.5±0.1 6.0 1.4±0.1 38.5
CYG-HB-L4 31.0 31.0 17.0 1.8±0.1 6.6 1.8±0.1 42.0
CYG-HB-L5 36.0 36.0 21.0 1.9±0.1 8.0 1.9±0.1 52.5
CYG-HB-L6 43.0 43.0 27.0 2.2±0.1 9.0 2.2±0.1 62.0
CYG-HB-L7 55.0 55.0 34.0 3.0±0.1 14.0 3.0±0.1 80.0

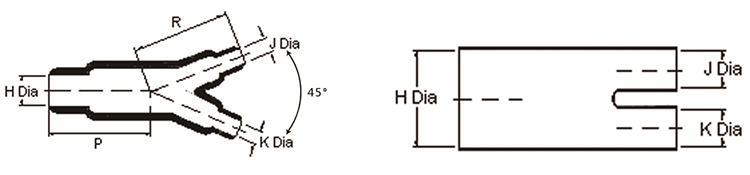

Y type product design and size
P/N Size as supplied Size after recovery
H min (J&K) min H max HW (J&K) max (J&K)W P
CYG-HB-Y1 14.5 7.0 5.5 2.2±0.1 3.0 1.2±0.1 50
CYG-HB-Y2 26.4 13.0 12.4 2.5±0.15 6.1 1.5±0.1 90
CYG-HB-Y3 39.0 27.0 17.0 3.2±0.2 11.5 2.8±0.1 160

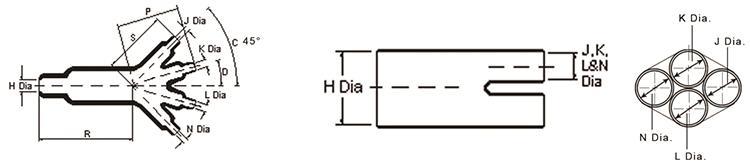

W type product design and size
P/N Size as supplied Size after recovery
H min (J&K&L&N) Min H max HW (J&K&L&N) max (J&K&L&N) W P
CYG-HB-W1 13.0 7.0 5.5 2.0±0.1 3.0 1.2±0.1 70
CYG-HB-W2 27.0 13.0 13.5 2.5±0.15 6.0 1.8±0.1 108
CYG-HB-W3 39.0 19.0 18.0 3.0±0.2 8.5 2.0±0.1 155

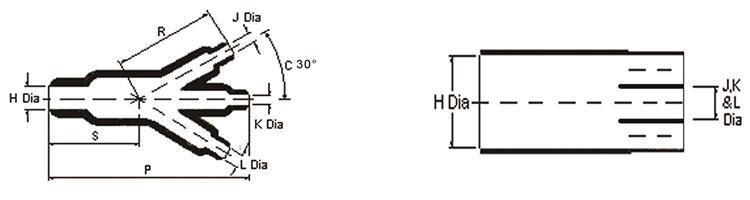

S type product design and size
P/N Size as supplied Size after recovery
H min (J&K&L) Min H max HW (J&K&L) max (J&K&L) W P
CYG-HB-S1 13.0 7.0 6 1.8±0.1 3.0 1.2±0.1 55
CYG-HB-S2 27.0 13.0 13.5 2.5±0.15 6.0 2.28±0.1 112
CYG-HB-S3 39.0 19.0 18.0 3.2±0.2 8.5 2.5±0.1 150

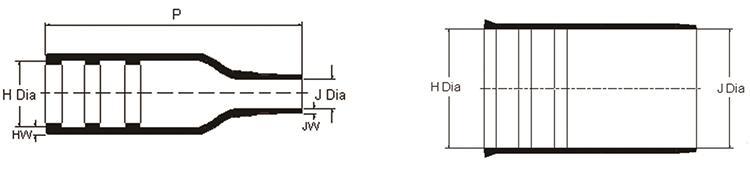

I type product design and size
P/N Size as supplied Size after recovery
H min J Min H max HW J max JW P
CYG-HB-I0 19 6.0 13.5 2.0±0.1 3.5 1.6±0.1 53.0
CYG-HB-I1 18 18.0 5.0 1.8±0.1 3.0 1.5±0.1 36.0
CYG-HB-I2 24 24.0 10.0 2.0±0.1 5.0 1.8±0.1 38.0
CYG-HB-I3 28.5 28.5 14.0 2.0±0.1 5.9 1.8±0.1 60.5
CYG-HB-I4 31.0 31.0 17.0 2.0±0.1 6.6 2.0±0.1 75.0
CYG-HB-I5 36.0 36.0 21.0 2.0±0.1 7.8 2.0±0.1 87.7
CYG-HB-I6 43.0 43.0 28.0 2.2±0.1 10.8 2.2±0.1 113.5
CYG-HB-I7 55.0 55.0 34.0 2.5±0.1 14.5 2.5±0.1 135.0
