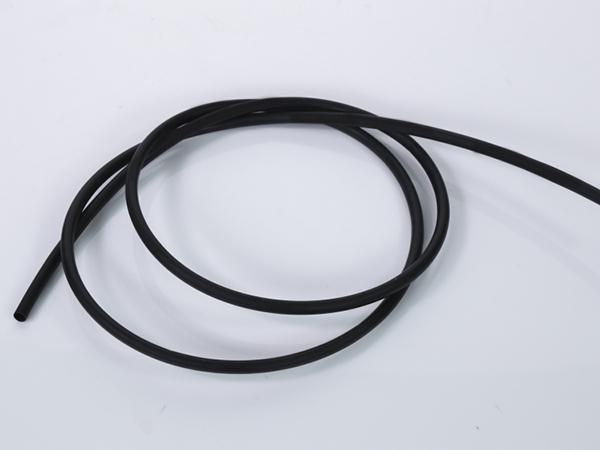

Diesel Resistant Heat Shrink Tubing

Model: CYG-DR

Material: Special elastomer

Shrink ratio: 2:1

Application
The diesel resistant heat shrink tubing is a high temperature resistant, low temperature resistant, flame retardant and chemical corrosion resistant tubing. This heat shrink tubing is recommended for use in military wire harnesses, automotive wirings and other places with wider operating temperature ranges and fluid resistance to diesel, aircraft fuel, hydraulic oil, lubricating oil and other harsh fluids.

Size
Size As supplied After recovery Standard packing
Inside (mm) Inside diameter (mm) Wall thickness (mm)
1/8 3.2 1.6 0.75±0.15 50
3/16 4.80 2.4 0.82±0.15 50
1/4 6.40 3.2 0.90±0.15 50
3/8 9.50 4.75 1.02±0.2 50
1/2 12.70 6.35 1.22±0.2 30
3/4 19.05 9.50 1.45±0.28 30
1 25.40 12.70 1.78±0.28 30
1-1/2 38.10 19.05 2.41±0.41 30
2 50.80 25.10 2.79±0.41 1
3 76.20 38.10 3.18±0.41 1
Specifications
Items Test methods Standard Specifications
Shrink ration 2:1 2:1
Tensile strength ASTM D412 ≥11.7MPa 12 MPa
Elongation at break ASTM D412 ≥250% 450%
Min. shrink temperature 175℃ 175℃
Longitudinal change ≤10% ≤5%
Aging in circulating-air oven 150℃, 168hrs
Tensile strength after aging ASTM D412 ≥10.3MPa 11.5.0MPa
Elongation at break after aging ASTM D412 ≥200% 250%
Cold shock -65℃，hrs No cracking No cracking
Heat shock 200℃，4hrs No cracking or drop ping No cracking or drop ping
Diesel resistance 23℃, 24hrs
Tensile strength ASTM D412 ≥10.4MPa 12.2MPa
Elongation at break ASTM D412 ≥200% 300%
Diesel resistance 50℃, 24hrs
Tensile strength ASTM D412 ≥10.4MPa 11.9MPa
Elongation at break ASTM D412 ≥200% 300%
Features
  • The operating temperature of the diesel resistant heat shrink tubing is -65℃~150℃ and the shrink temperature is 175℃.
  • The diesel resistant heat shrink tubing is compliant with AS23053/16 requirements.
