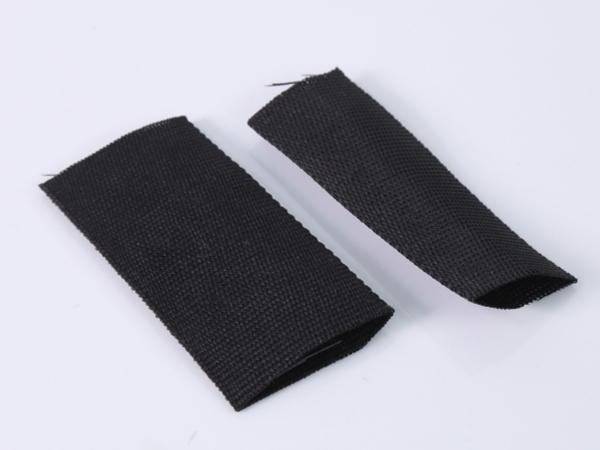

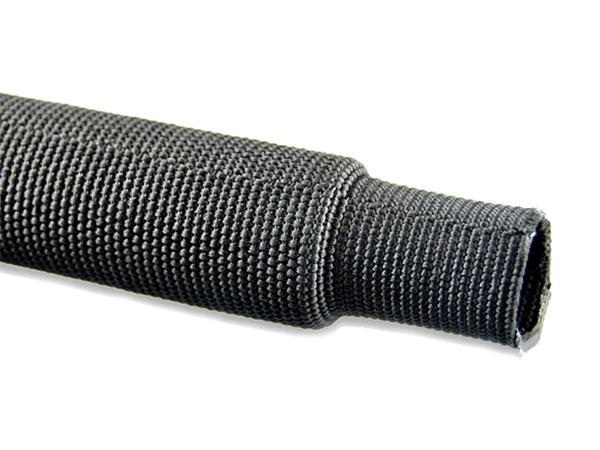

Heat Shrink Fiber Braided Sleeving

Model: CYG-RSF

Material: The heat shrink fiber braided sleeving is manufactured from superior abrasion resistant fiber and cross-linked modified polyolefin resin.

Shrink ratio: 2:1

Application
This heat shrink fiber braided sleeving is designed primarily to provide outstanding mechanical abrasion protection for automotive rubber hoses, plastic pipes and harness wiring bundles. It features an outstanding vibration suppression and noise suppression. Manufactured from fiber, this heat shrink tubing is also flexible, thus making it easy to use. It also features an excellent abrasion resistance and heat absorption.

Size
Size Min. ID as supplied(mm) Max. ID after recovery (mm)
CYG-RSF-12/6-B 12 6
CYG-RSF-20/10-B 20 10
CYG-RSF-30/15-B 30 15
CYG-RSF-40/20-B 40 20
CYG-RSF-50/25-B 50 25
CYG-RSF-60/30-B 60 30
CYG-RSF-70/35-B 70 35

Remarks: 1. Standard color: black

Specifications
Items Test condition(s) Specifications
Shrink temperature 110°C
Operating temperature -40°C to 125°C
Abrasion resistance (200g load, 144 000 cycles) 23℃ by 168h No damage to underlying hose
158℃by 168h No damage to underlying hose
Low temperature flexibility 4 Hours At -40°C, 10X diameter mandrel No cracking
Cold impact 200g weight from 100mm at -40°C No cracking
Thermal shock 100 cycles between -40°C and 125°C No deterioration in abrasion resistance at 80°C
Fluid resistance 24 hrs. immersion at 23°C No deterioration in abrasion resistance at 80°C
Features
  • This heat shrink fiber braided tubing has excellent an flexibility, abrasion resistance and vibration suppression, and it is easy to use.
  • The operating temperature of this heat shrink fiber braided tubing is -40℃~125℃, and the shrink temperature of this heat shrink fiber braided tubing is 110℃.
  • The standard color of this heat shrink fiber braided tubing is black.
  • This heat shrink fiber braided tubing is certified to UL standards and the identification number is E329207.
