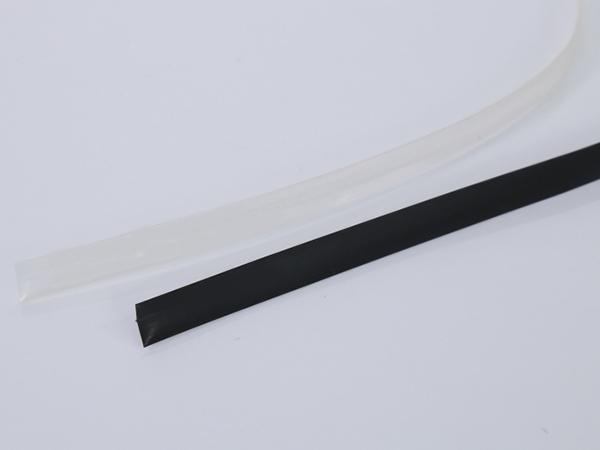

PVDF Heat Shrink Tubing for 150 ℃

Model: CYG-KYNAR(150℃)

Material: Irradiated cross-linked modified polyolefin

Shrink ratio: 2:1

Application
CYG-KYNAR (150℃) is clear, thin-wall, flexible, flame-retardant heat-shrinkable tubing with excellent chemical resistance. It is especially suitable for applications requiring abrasion and cut-through resistance, or superior chemical and solvent resistance properties. This heat shrink tubing provides electrical insulation and strain relief of multipoint connectors and solder joints. It is ideal for applications that require dense packing of components or visual inspection of covered components.

Standard: UL224, SAE-AMS-DTL25053/18

Size
Size Min. inside diameter as supplied(mm) Max. inside diameter after recovery (mm) Recovered wall thickness (mm)
3/64 1.2 0.6 0.25 ± 0.05
1/16 1.6 0.8 0.25 ± 0.05
3/32 2.4 1.2 0.25 ± 0.05
1/8 3.2 1.6 0.25 ± 0.05
3/16 4.8 2.4 0.25 ± 0.05
1/4 6.4 3.2 0.33 ± 0.05
3/8 9.5 4.8 0.33 ± 0.05
1/2 12.7 6.4 0.33 ± 0.05
4/3 19.1 9.5 0.43 ± 0.08
1 25.4 12.7 0.48 ± 0.08
Specifications
Item Test method Unit Specifications for PVDF Heat Shrink Tubing for 150 ℃ Specifications for PVDF Heat Shrink Tubing for 175 ℃
Min. shrink temperature °C 140°C 155°C
Operating temperature °C -55°C ~150°C -55°C ~175°C
Specific gravity ASTM D792 g/cm3 1.78 1.78
Tensile strength ASTM D2671 M Pa ≥30 ≥34.5
Elongation at break ASTM D2671 % ≥150 ≥150
Elongation at break after aging 225℃,168h % ≥100 ≥50
Heat shock 275℃,4h - -No cracking- -No cracking-
Cold bend -55℃,4h - -No cracking- -No cracking-
Dielectric strength ASTM D2671 kV/mm ≥15.7 ≥31.5
Volume resistance ASTM D257 Ω.cm ≥1013 ≥1013
Flammability UL-224 VW-1 Pass Pass
Features
  • This heat shrink tubing is high-temperature resistant and transparent. Common heat shrink tubing has a temperature resistance up to 125℃, but this heat shrink tubing has a heat resistance of up to 150℃.
  • The heat shrink shielding tubing is fire resistant, flame retardant and flexible (150℃). KTG Polyolefin Heat Shrink Tubing is more flexible than KTG Flame Retardant Heat Shrink Polyolefin Tubing.
  • The operating temperature of this heat shrink tubing is -55℃~155℃/-55℃~175℃.
  • The shrink temperature of this heat shrink tubing is 150℃~175℃.
  • The flexible heat shrink tubing is certified by UL224 150℃ 600V.
  • The semi-rigid property of this heat shrink tubing is compliant with AS23053/8 requirements.
