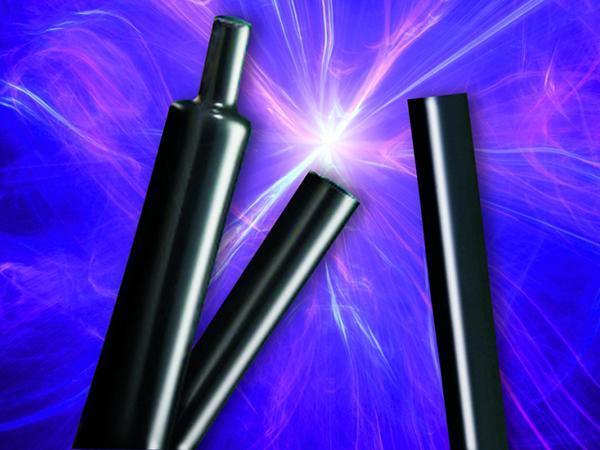

Heat Shrink Fluoropolymer Tubing

Model: CYG-FKM

Material: Irradiated cross-linked modified fluoroelastomer

Shrink ratio: 2:1

Application
This fluoropolymer heat shrink tubing is used for electronic components at elevated temperatures and in oily environments for insulation protection of resistors and capacitors, and for mechanical protection of various metal wirings, such as insulation of wire ends and terminals.

Standard: AS23053/13

Size
Size (inch) Inside diameter Wall thickness after recovery (mm) Standard length (m/spool)
Minimum expanded as supplied (mm) Maximum after recovery (mm)
1/8 3.2 1.6 0.76 50
3/16 4.8 2.4 0.89 50
1/4 6.4 3.2 0.89 50
3/8 9.5 4.7 1.02 50
1/2 12.7 6.4 1.22 30
5/8 15.9 7.9 1.40 30
3/4 19.0 9.5 1.45 30
7/8 22.2 11.1 1.53 30
1 25.4 12.7 1.78 30
1-1/4 31.8 15.9 1.91 30
1-1/2 38.1 19.1 2.41 15
2 51.8 25.4 2.79 1
Specifications
Item CB-KFM fluoroelastomer shrinkable tubing Silicone rubber shrinkable tubing
Operating temperature (℃) -55℃~+200℃ -60℃~+200℃
Mechanics Good Poor
Acid and alkali resistance Good Poor
Oil resistance Excellent Normal
Flammability Good Self-Flammability Flammable, and bad self-flammability
Abrasion resistance Normal Poor
Sealing Good Poor
Insulation Normal Good
Water proof Good Normal
Features
  • This heat shrink tubing is oil resistant, heat resistant, flame retardant, acid resistant, alkali resistant and flexible. Made from fluoropolymer, it features a high temperature resistance of up to 200℃. The heat shrink tubing contains an organic filler, allowing it to offer long-term service in applications such as automotive diesel. After the irradiation cross link process, the recombination of molecular structures will flexibly attach and improve the plasticity. This heat shrink tubing is suitable for coating irregular shapes in harsh environments.
  • The operating temperature of this heat shrink tubing is -40℃~200℃.
  • The shrink temperature of this heat shrink tubing is 175℃.
  • The standard color of this heat shrink tubing is black.
