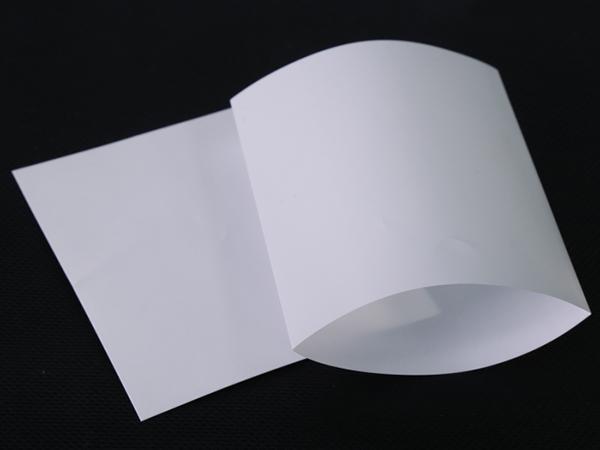

PET Heat Shrink Film

Model: CB-PET

Material: Modified polyolefin

Shrink ratio: 2:1

Application

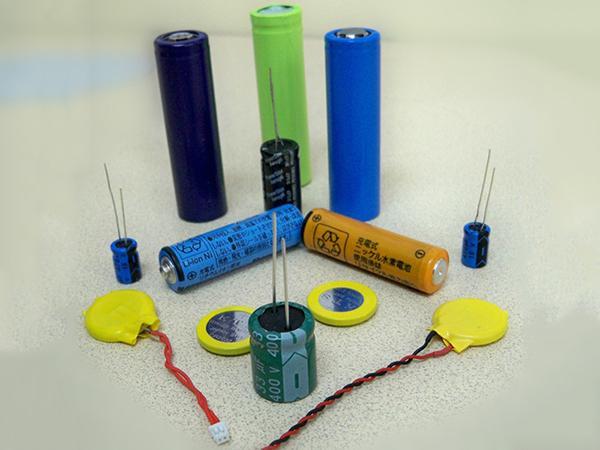

This heat shrink tubing is a low smoke zero halogen tubing that is certified to RoHS, REACH, and SONY standards. It is often used to provide an outstanding shielding for high-grade rechargeable batteries, toys, medical instruments and other electronic components such as electrolytic capacitors and inductance. This heat shrink tubing is free from Cd, Pb, Hg, Cr6+, PBBs, PBBEs/PBDEs, PCB, PCT, PCN and other restricted materials specified by first-class environmental management requirements. The zero halogen heat shrink tubing is non-toxic and recyclable, making it environmentally friendly.

Size
Size Width (mm) Thickness (×0.01mm) Shrink ratio(%) Longitudinal ratio (%) Longitudinal ratio (180±2) ℃ ×15 min
Φ3 5.5±0.2 8.0±2.0 48±4 8±3 12±3
φ4 7.1±0.2 8.0±2.0 48±4 8±3 12±3
φ5 9.1±0.2 8.0±2.0 48±4 8±3 12±3
φ6 10.6±0.2 8.0±2.0 48±4 8±3 12±3
φ6.3 11.0±0.2 8.0±2.0 48±4 8±3 12±3
φ8 14.0±0.2 9.0±2.0 48±4 8±3 12±3
φ10 17.0±0.2 9.0±2.0 48±4 8±3 12±3
φ12 20.4±0.3 10.0±2.0 48±4 8±3 12±3
φ12.5 21.5±0.3 10.0±2.0 48±4 8±3 12±3
φ13 22.0±0.3 10.0±2.0 48±4 8±3 12±3
φ13.5 22.6±0.3 10.0±2.0 48±4 8±3 12±3
φ14.5 25.0±0.3 10.0±2 48±4 8±3 12±3
φ16 27.1±0.3 11.0±2 48±4 8±3 12±3
φ18 3.02±0.3 11.0±2 48±4 8±3 12±3
φ22 36.3±0.3 11.0±3.0 48±4 8±3 12±3
φ25 41.3±0.5 12.0±3.0 48±4 8±3 12±3
φ30 49.0±0.5 12.0±3.0 48±4 8±3 12±3
φ35 56.6±0.5 12.0±3.0 48±4 8±3 12±3
Φ40 65.0±1.0 12.0±3.0 48±5 8±3 12±3
Φ42 68.5±1.0 12.0±3.0 48±5 8±3 12±3
Φ45 72.0±1.0 12.0±3.0 48±5 8±3 12±3
Φ48 77.6±1.0 12.0±3.0 48±5 8±3 12±3
Φ50 84.0±1.0 12.0±3.0 48±5 8±3 12±3
Φ52 88.5±1.0 12.0±3.0 48±5 8±3 12±3
Φ60 96.0±1.0 12.0±3.0 48±5 8±3 12±3
Φ63.5 105.0±1.0 12.0±3.0 48±5 8±3 12±3
Specifications
Item Unit Specifications
Appearance ­ Without feculence
Bend (280mm) mm At or above size 8.0mm < 3.0 At or under size 10.0mm < 3.5
Density Kg/L 1.2—1.5
Tensile strength N/m2 5.0*107---10.0*107
Ultimate elongation rate % 50---350
Absorption (water) % < 2.0%
Dielectric strength Kv/mm > 10
Volume resistance Ω.cm > 1014
Operating temperature ℃ -40℃ — +125℃
