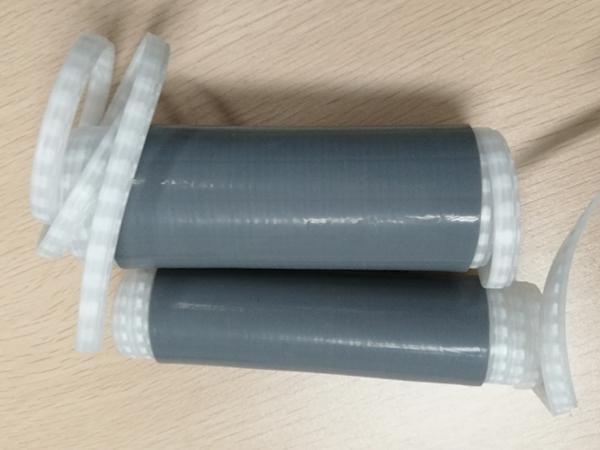

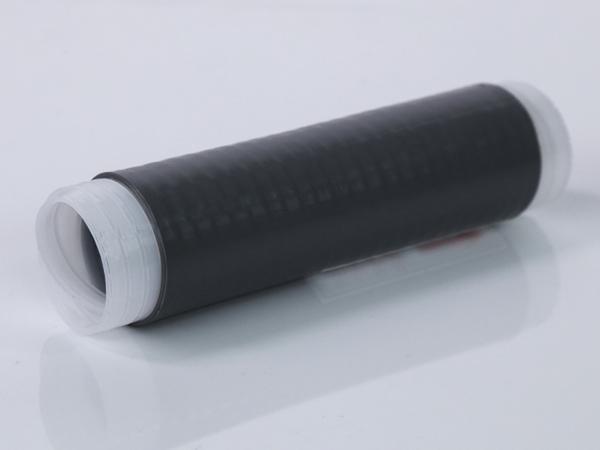

Cold Shrink Tubing

Material: Solid silicon rubber

Shrink ratio: 3.6～4.6

Application
Cold shrink tubing, whose product ID is CYG-SSS, has a wide array of uses, such as a coaxial cable in communication stations, the waterproof sealing of 1/2 jumper to type N, 1/2 jumper to DIN, the joint of 1/2 jumper to 7/8 feeder and cable connector, the insulation sealing of wire and cable connections and the insulation protection for other types of connectors.

Specifications
Size As supplied After recovery Fit size
Inside Diameter /mm Tube length /mm Inside Diameter /mm Tube length /mm Min. Outer Diameter-Max. Outer Diameter /mm
Φ25/5.5-90 25±2 90±10 5.5±1.0 110±5 7.4-20
Φ30/9-100 30±2 100±10 8.5±1.0 120±5 10--25
Φ40/10-100 40±2 100±10 10.0±1.0 125±5 12.7-35
Size As supplied After recovery Fit size
Inside Diameter /mm Tube length /mm Mastic width /mm Tube length /mm Min. Outer Diameter-Max. Outer Diameter /mm
Φ30/9-100 (JN2) 30±2 100±10 25±5 120±5 10--25
Φ40/11-100 (JN2) 40±2 100±10 25±5 125±5 12.7-35
Φ40/11-120 (JN2) 40±2 120±10 25±5 145±5 12.7-35
Φ40/11-180 (JN2) 40±2 180±10 25±5 200±5 12.7-35
Specifications
Item Test method Specification Typical value
Waterproof Grade (No mastic) GB4208/IEC529 IPX5 Qualified
Waterproof Grade (Mastic) GB4208/IEC529 IPX8 Qualified
Tensile Strength GB/T528 ≥7MPa 9.0MPa
Ultimate Elongation Ratio GB/T528 ≥700% 840%
Tear Strength GB/T529 method B ≥25N/mm 36N/mm
Flammability UL94-HB HB flame retardant rating Qualified
Ozone Resistance ASTM D1149 No surface cracking Qualified
Xenon-Arc Weathering ISO4892.2 No surface damage Qualified
Mold Test IEC60068-2-10 I Grade 0 Grade
Features
  • Easy to install, requires no special tools or heating
  • Excellent mold resistance, ozone resistance, exposure resistance and Xenon-Arc resistance.
  • Excellent moisture resistance and water resistance, high radial pressure, meets the IPX5 waterproof requirements (cold shrink with mastic meets the IPX8 waterproof requirements)
  • Long service life with great tear resistance and tensile strength
  • Excellent temperature performance. The lowest installation temperature is -20 ºC, the operation temperature is from -40 ºC to 200 ºC.
