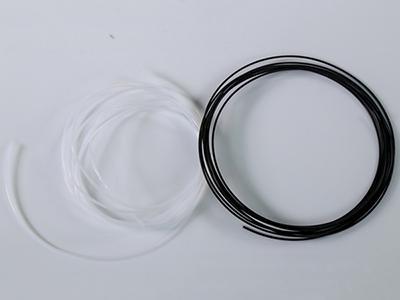

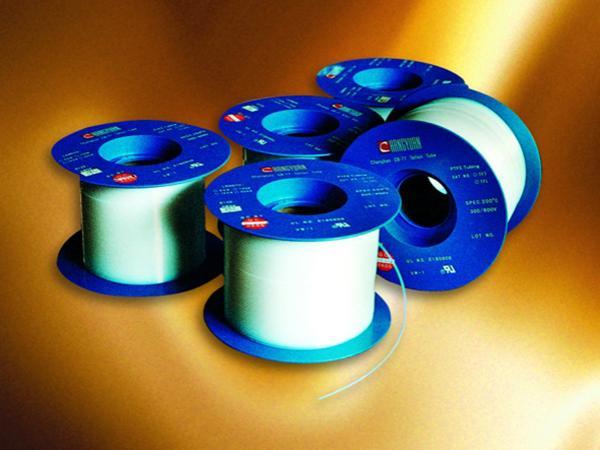

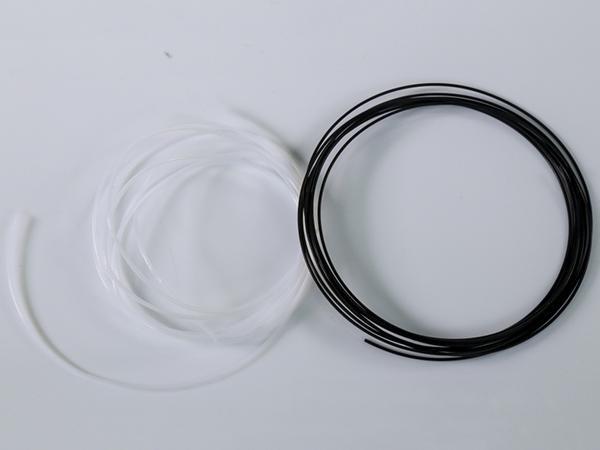

PTFE Non Heat Shrink Tubing
Model: CB-TT
Application
Our PTFE non heat shrink tubing (product ID: CB-TT (L/S/T)), is made of polytetrafluoroethylene (PTFE) material and is widely used in electronics, computers, communications equipment and other fields because of its high temperature (260℃) resistance, corrosion resistance, high insulation and high strength. CB-TT has passed the American UL certified (certification number: E180908) and the compatibility test of the UL 1446 insulation system (DASH2B-5 System of PD GEORGE CO/RIPLEY RESIN)
Voltage grade: 150V/300V/600V
Temperature range: -80℃～200℃
Size| PTFE Insulation Tubing | ||||||
| Size | ID (mm) | OD (mm) | ||||
| AWG | MIN | NOR | MAX | CB-TT(S) | CB-TT(T) | CB-TT(L) |
| 30 | 0.25 | 0.30 | 0.38 | 0.76 | 0.76 | 0.60 |
| 28 | 0.33 | 0.38 | 0.46 | 0.84 | 0.84 | 0.68 |
| 26 | 0.41 | 0.46 | 0.53 | 0.92 | 0.92 | 0.76 |
| 24 | 0.51 | 0.56 | 0.66 | 1.16 | 1.06 | 0.86 |
| 23 | 0.58 | 0.66 | 0.74 | 1.26 | 1.16 | 0.96 |
| 22 | 0.66 | 0.71 | 0.81 | 1.31 | 1.21 | 1.01 |
| 21 | 0.74 | 0.81 | 0.89 | 1.41 | 1.31 | 1.11 |
| 20 | 0.81 | 0.86 | 0.97 | 1.66 | 1.46 | 1.16 |
| 19 | 0.91 | 0.96 | 1.07 | 1.76 | 1.56 | 1.26 |
| 18 | 1.01 | 1.07 | 1.17 | 1.87 | 1.67 | 1.37 |
| 17 | 1.14 | 1.19 | 1.32 | 1.99 | 1.79 | 1.49 |
| 16 | 1.29 | 1.34 | 1.47 | 2.14 | 1.94 | 1.64 |
| 15 | 1.45 | 1.50 | 1.65 | 2.30 | 2.10 | 1.80 |
| 14 | 1.62 | 1.68 | 1.83 | 2.48 | 2.28 | 2.08 |
| 13 | 1.83 | 1.93 | 2.05 | 2.73 | 2.53 | 2.33 |
| 12 | 2.05 | 2.16 | 2.31 | 2.96 | 2.77 | 2.56 |
| 11 | 2.31 | 2.41 | 2.57 | 3.21 | 3.01 | 2.81 |
| 10 | 2.59 | 2.69 | 2.84 | 3.49 | 3.29 | 3.09 |
| 9 | 2.90 | 3.00 | 3.15 | 4.00 | 3.76 | 3.40 |
| 8 | 3.28 | 3.38 | 3.53 | 4.38 | 4.14 | 3.78 |
| 7 | 3.65 | 3.76 | 3.94 | 4.76 | 4.52 | 4.16 |
| 6 | 4.11 | 4.22 | 4.41 | 5.22 | 4.98 | 4.72 |
| 5 | 4.62 | 4.72 | 4.95 | 5.72 | 5.48 | 5.22 |
| 4 | 5.18 | 5.28 | 5.53 | 6.28 | 6.04 | 5.78 |
| 3 | 5.81 | 5.94 | 6.20 | 6.94 | 6.70 | 6.44 |
| 2 | 6.55 | 6.68 | 6.93 | 7.68 | 7.44 | 7.18 |
| Item | Test method | Specifications |
| Specific Gravity | ASTM D792 | 2.16g/cm3 |
| Tensile strength | ASTM D638 | 24.5MPa |
| Ultimate Elongation Ratio | ASTM D638 | 350% |
| Flexural Modulus | ASTM D790 | 490MPa |
| Impact Strength | ASTM D256+23℃-54℃j/m | No cracking |
| Hardness | ASTM D2240 | 55 Shore D |
| Coefficient of Dynamic Friction | 0.1 | |
| Melting Point | 327℃ | |
| Service Temperature | 260℃ | |
| Flammability | UL-224 | VW-1 |
| Dielectric Constant At 103-106Hz | ASTM D150 | 2.1 |
| Dissipation Factor At 106Hz | ASMT D150 | 0.0002 |
| Arc Resistance | ASMT D495 | ＞300s |
| Volume Resistance | ASTM D257 | ＞1018Ω.cm |
| Weather Resistance | Weather-o-meter(2000h) | No change |
| Solvent Resistance | ASTM D543 | First rate |
| Chemical Resistance | ASTM D543 | First rate |
| Pressure Resistance | 2500V(60s), no breakdown | Pass |
