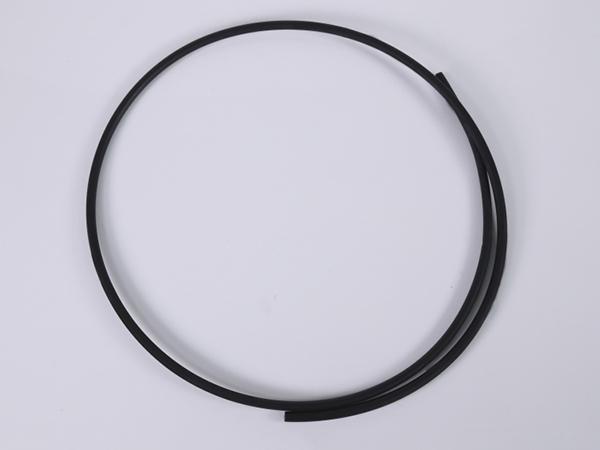

Non Heat Shrink PE Tubing

Model: CB-300(PE)/ 600(PE)

Material: Crosslinked modified polyolefin resin

Application
Non heat shrink PE tubing is an upgrade substitute product for non-shrink PVC tubing since its main material, crosslinked modified polyolefin resin is a halogen-free environmentally friendly material which meets the requirements of RoHS, Reach and SONY environmental protection standards. Non heat shrink PE tubing iswidely used in electronic components, home appliances, automobiles, machinery, toys, sporting goods and other fields.

Size
Size AS supplied Wall thickness for 300V Wall thickness for 600V
Bφ0.9 0.95±0.05 0.38±0.05 0.5±0.06
Bφ1.4 1.45±0.05 0.38±0.05 0.62±0.06
Bφ2.0 2.05±0.05 0.38±0.05 0.62±0.06
Bφ2.5 2.55±0.05 0.38±0.05 0.62±0.06
Bφ3.0 3.1±0.1 0.5±0.06 0.62±0.06
Bφ3.4 3.5±0.1 0.5±0.06 0.62±0.06
Bφ4.0 4.1±0.1 0.5±0.06 0.62±0.06
Bφ4.8 4.9±0.1 0.5±0.06 0.62±0.06
Bφ5.8 5.9±0.1 0.5±0.06 0.62±0.06
Bφ6.3 6.4±0.1 0.5±0.06 0.62±0.06
Bφ6.8 6.9±0.1 0.5±0.06 0.62±0.06
Bφ7.3 7.4±0.1 0.5±0.06 0.62±0.06
Bφ7.8 7.9±0.1 0.5±0.06 0.62±0.06
Bφ9.7 8.9±0.1 0.5±0.06 0.62±0.06
Bφ10.6 9.85±0.2 0.5±0.06 0.62±0.06
Bφ11.6 10.8±0.2 0.5±0.06 0.62±0.06
Bφ12.6 11.8±0.2 0.62±0.06 0.75±0.06
Bφ13.6 12.8±0.2 0.62±0.06 0.75±0.06
Bφ14.6 13.8±0.2 0.62±0.06 0.75±0.06
Bφ15.6 14.8±0.2 0.62±0.06 0.75±0.06
Specifications
Item Specifications
Temperature Rating (℃) 125
Longitudinal Change ≤±5%
Tensile Strength (MPa) ≥10.4
Ultimate Elongation Ratio (%) ≥100
Aging in Circulating-air Oven 136.0±1.0℃, 168hrs
After aging Tensile Strength (MPa) ≥7.3
Ultimate Elongation Ratio (%) ≥100
Potential Rating (V) 300V, 600V
Volume Resistance (Ω cm) ≥1010
Dielectric Strength (V) 2500 (60s),No breakdown
Corrosion of Bare Copper No corrosion
Heat Shock No cracking
Cold Bend No cracking
Features of Non heat shrink PE tubing
  • Suitable substitute for non-shrink PVC tubing, halogen-free and environmentally friendly, meets the standards of "RoHS" and "Sony", UL CUL certification.
  • Can effectively replace PVC tubing. (except clear PVC)
  • Low smoke and resistant to flame, meets the requirements of UL224 VW-1 and JQA F-mark in Japan.
