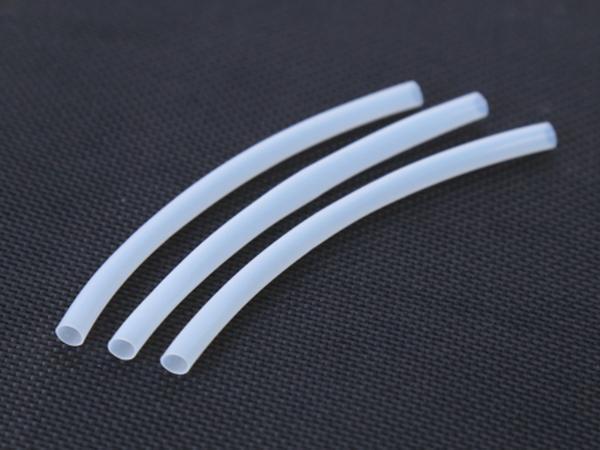

Non Heat Shrink FEP Tubing

Model: CYG-FEP(N)

Material: FEP, F46
  • Non heat shrink FEP tubing, thanks to its excellent temperature resistance, can be used normally in a temperature range of -80～+250℃ extended periods.
  • Weather resistance and flame resistance.
  • Dielectric properties and high voltage resistance.
  • Corrosion resistance. Is insoluble in nearly any solvent.
  • Wear resistance, self-lubrication performance and special non-viscous surface.
  • High tensile strength.

Applications
Non heat shrink FEP tubing (product ID: CYG-FEP (N)), can be widely used in power plant heat exchangers, steam piping, high purity reagent delivery pipes in the chemical industry, all kinds of corrosive medium pipelines, communication element filter units, and various frequency protect tubing thanks to excellent characteristics such as excellent heat resistance, abrasion resistance, viscous resistance, acid resistance, UV resistance, and high transparency.

Size
FEP Insulation Tubing
Size ID (mm) Wall (mm)
AWG MIN NOR MAX
30 0.25 0.30 0.38 0.23±0.05
28 0.33 0.38 0.46 0.23±0.05
26 0.41 0.46 0.53 0.23±0.05
24 0.51 0.56 0.66 0.3±0.05
22 0.66 0.71 0.81 0.3±0.05
20 0.81 0.86 0.97 0.41±0.08
19 0.91 0.96 1.07 0.41±0.08
18 1.01 1.07 1.17 0.41±0.08
17 1.14 1.19 1.32 0.41±0.08
16 1.29 1.34 1.47 0.41±0.08
15 1.45 1.50 1.65 0.41±0.08
14 1.62 1.68 1.83 0.41±0.08
13 1.83 1.93 2.05 0.41±0.08
12 2.05 2.16 2.31 0.41±0.08
11 2.31 2.41 2.57 0.41±0.08
10 2.59 2.69 2.84 0.41±0.08
9 2.90 3.00 3.15 0.51±0.1
8 3.28 3.38 3.53 0.51±0.1
7 3.65 3.76 3.94 0.51±0.1
6 4.11 4.22 4.41 0.51±0.1
5 4.62 4.72 4.95 0.51±0.1
4 5.18 5.28 5.53 0.51±0.1
3 5.81 5.94 6.20 0.51±0.1
2 6.55 6.68 6.93 0.51±0.1
1 7.34 7.47 7.75 0.51±0.1
0 8.26 8.38 8.69 0.51±0.1
Performance index
Items Test methods Specification
Density ASTM D 792 2.12-2.17
Operation temperature℃ -67--200
Dielectric Strength ASTM D 2671 ≥ 19.7 kV/mm
Water absorption % ASTM D 570 ＜0.01%
Tensile strength ASTM D 638 ≥13.8MPa
Elongation ASTM D 638 ≥200%
Volume resistivity ASTM D 876 ≥1017Ω.cm
Low temperature flexibility -65±1℃ No cracking
Flammability UL224 PASS
Features
  • Weather resistance, temperature resistance, working temperature range is -67℃ to 200℃.
  • Excellent mechanical properties, non - viscous, easy to clean, low water absorption, flame retardant.
