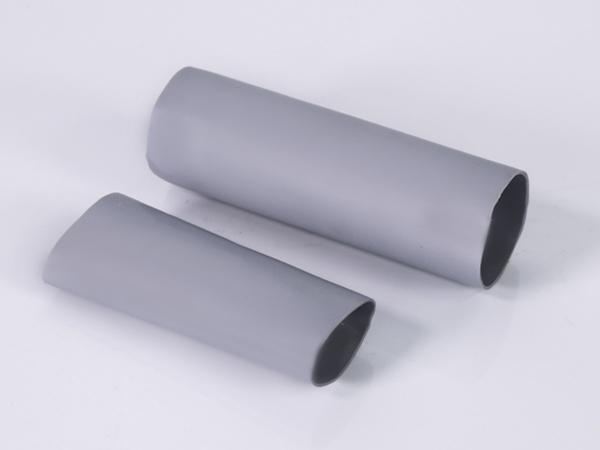

Non Shrink Silicone Rubber Tubing

Model: CB-SRT

Description
Non shrink silicone rubber tubing is specially designed to provide insulation protection and coating for electronic parts with special requirements used in electrical appliances, lighting, medical equipment, etc. Its greatest advantage is its temperature resistance (up to 200 ℃), which is greater than other similar tubing products.

Size
Size Inside diameter (D) (mm) Wall-thickness (T) (mm) Packing Length (Meter/Roll)
Φ0.8 0.8+0.2/-0.1 1.0±0.10 100
Φ1.0 1.0+0.2/-0.1 1.0±0.10 100
Φ1.2 1.2+0.2/-0.1 1.0±0.10 100
Φ1.5 1.5+0.2/-0.1 1.0±0.10 100
Φ2.0 2.0+0.2/-0.1 1.0±0.10 100
Φ2.5 2.5+0.2/-0.1 1.0±0.10 100
Φ3.0 3.0+0.2/-0.1 1.0±0.10 100
Φ3.5 3.5+0.2/-0.1 1.0±0.10 100
Φ4.0 4.0+0.2/-0.1 1.0±0.10 100
Φ4.5 4.5+0.2/-0.1 1.0±0.10 100
Φ5.0 5.0+0.2/-0.1 1.0±0.10 100
Φ6.0 6.0+0.2/-0.1 1.0±0.10 100
Φ7.0 7.0+0.2/-0.1 1.0±0.10 100
Φ8.0 8.0+0.2/-0.1 1.0±0.10 100
Φ9.0 9.0+0.2/-0.1 1.0±0.10 100
Φ1 0 1 0+0.2/-0.1 1.0±0.10 100
Φ1 1 1 1+0.2/-0.1 1.5±0.10 5 0
Φ1 2 1 2+0.2/-0.1 1.5±0.10 5 0
Φ1 3 1 2+0.2/-0.1 1.5±0.10 5 0
Φ1 4 1 4+0.2/-0.1 1.5±0.10 5 0

Remarks: Special sizes are upon request

Technical performance
Specification For flammability For general type
Tensile strength MPa(Kg/cm2) ≥6.9(70) ≥6.9(70)
Ultimate Elongation Ratio (%) ≥200 ≥300
Peel strength kN/m(kg f/cm) ≥14.5(15) ≥14.5(15)
Resistant volume Ω·m(Ω·cm) ≥2×1012(2×1014) ≥2×1012(2×1014)
Dielectric strength kV/mm ≥25 ≥25
Dielectric constant (ε) 50Hz 3.2 3.2
Dielectric loss angle tangent 50Hz 0.001 0.001
Flammability UL-224 VW-1 ――
Operation Temp. (℃) -50～+200 -50～+200

Remarks: Flame retardant tubing is not transparent.
