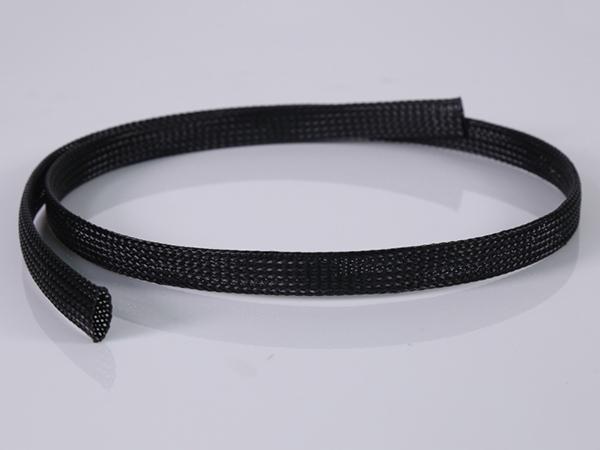

Polyester Expandable Braided Sleeving
Model: CYG-PETN
Material: Special environment-friendly PET
Applications
Polyester expandable braided sleeving is made of high-strength environmentally-friendly PET monofilament and can be used in various auto parts, computer internal wiring, optical cable, cable and speaker wire tightening and protection due to its unique advantages of flexibility, elasticity, abrasion resistance, flame retardance, temperature resistance, pressure resistance, etc.
| AWG | type | cable range |
| 24# | 320024005 | 4-----8 |
| 32# | 320032007 | 5-----10 |
| 40# | 320040010 | 7-----14 |
| 48# | 320048012 | 8-----16 |
| 56# | 320056015 | 10----12 |
| 64# | 320064018 | 12-----24 |
| 72# | 320072020 | 15-----30 |
| 96# | 320096030 | 20-----40 |
Remarks: Special sizes and materials are upon request
Performance index| Material | Polyester |
| Operating Temperature | -50℃-+150℃ |
| Melt point | 240±10℃ |
| Flammability | VW-1 |
| Standard color | Black and grey |
| Approval | UL, ROHS, PFOS, REACH, Halogen Free |
| Cutting tool | Hot knife |
- Woven from monofilament fiber, light weight and excellent softness.
- Can be perforated in any position without tubing material damaging and is easy to operate.
- Outstanding flexibility and wide operating temperature range (-40℃~+150℃).
- Wide application, can be used for the protection of round wire and flat wire.
