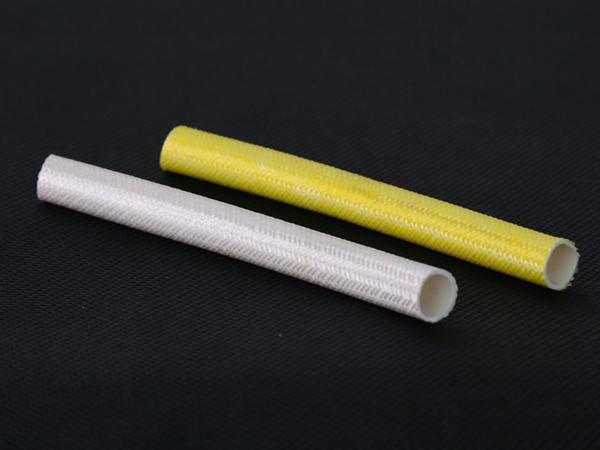

Silicone Rubber Coated Fiberglass Sleeve

Model: CB-SRS

Description
CB-SRS1 Silicone Rubber Coated Fiberglass Sleeve (inner: fiberglass, outer: silicon rubber)
CB-SRS2 Silicone Rubber Coated Fiberglass Sleeve (inner: silicon rubber, outer: fiberglass)
Silicone rubber coated fiberglass sleeve provides effective insulation protection for H&N motors, household appliances, heating equipment and special lamps thanks to its excellent insulation and temperature resistance properties.

Size
Size Inside diameter (D) (mm) Inside diameter (D) (mm) SPQ(m/roll)
4000V 7000V
Φ0.5 0.5+0.20/-0 0.40±0.05 0.45±0.05 200
Φ0.8 0.8+0.20/-0 0.40±0.05 0.45±0.05 200
Φ1.0 1.0+0.20/-0 0.40±0.05 0.45±0.05 200
Φ1.5 1.5+0.20/-0 0.40±0.05 0.45±0.05 200
Φ2.0 2.0+0.20/-0 0.40±0.05 0.45±0.05 200
Φ2.5 2.5+0.25/-0 0.40±0.05 0.50±0.05 100
Φ3.0 3.0+0.30/-0 0.40±0.05 0.50±0.05 100
Φ3.5 3.5+0.30/-0 0.50±0.05 0.550±0.05 100
Φ4.0 4.0+0.30/-0 0.50±0.05 0.550±0.05 100
Φ4.5 4.5+0.30/-0 0.50±0.05 0.550±0.05 100
Φ5.0 5.0+0.30/-0 0.50±0.05 0.550±0.05 100
Φ6.0 6.0+0.35/-0 0.550±0.05 0.6±0.05 100
Φ7.0 7.0+0.35/-0 0.550±0.05 0.6±0.05 100
Φ8.0 8.0+0.40/-0 0.550±0.05 0.6±0.05 50
Φ9.0 9.0+0.40/-0 0.550±0.05 0.60±0.05 50
Φ10.0 10.0+0.50/-0 0.60±0.05 0.65±0.05 50
Φ11.0 11.0+0.50/-0 0.60±0.05 0.65±0.05 50
Φ12.0 12.0+0.50/-0 0.60±0.05 0.65±0.05 30
Specifications
Item Silicone Rubber Glassfiber sleeving
Temperature Range 10℃~+200℃
Temperature Endurance 200℃±2℃、168h≥1/2 primary voltage
Aging Test 260℃, 6h, No Cracking
Cold Bend No Cracking
Horizontal Flame Test Pass
Flammability VW-1
Volume Resistivity 1011
Submerge Water Test No Changes
