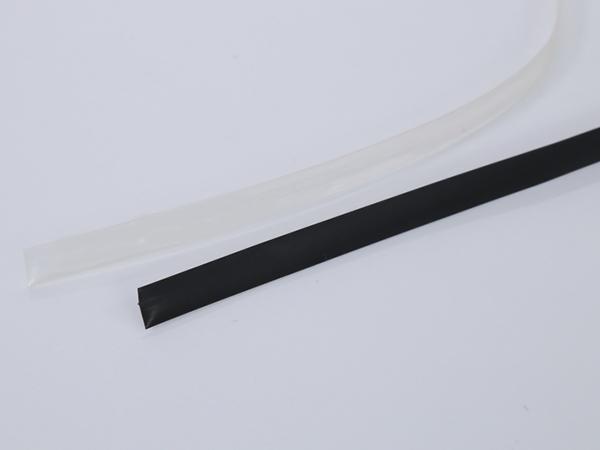

PVDF Heat Shrink Tubing for 175 ℃

Model: CYG-KYNAR(175℃)

Material: Irradiated cross-linked modified polyolefin

Shrink ratio: 2:1

Application
CYG-KYNAR(175℃) is clear, thin wall, semi-rigid, flame-retardant heat-shrinkable tubing with both high temperature and chemical resistance. It is especially suitable for applications requiring high temperature performance, outstanding abrasion resistance and cut-through resistance, or superior chemical and solvent properties. This heat shrink tubing provides electrical insulation and strain relief of multipoint connectors and solder joints. CYG-KYNAR heat shrink tubing is ideal for dense packing of components or visual inspection of covered components.

Standard: UL224, SAE-AMS-DTL25053/18

Size
Size Min. inside diameter as supplied (mm) Max. inside diameter after recovery (mm) Wall thickness after recovery (mm)
3/64 1.2 0.6 0.25 ± 0.05
1/6 1.6 0.8 0.25 ± 0.05
3/32 2.4 1.2 0.25 ± 0.05
1/8 3.2 1.6 0.25 ± 0.05
3/16 4.8 2.4 0.25 ± 0.05
1/4 6.4 3.2 0.33 ± 0.05
3/8 9.5 4.8 0.33 ± 0.05
1/2 12.7 6.4 0.33 ± 0.05
4/3 19.1 9.5 0.43 ± 0.08
1 25.4 12.7 0.48 ± 0.08
Specifications
Item Test method Unit Specifications for Polyolefin Heat Shrink Tubing Specifications for PVDF Heat Shrink Tubing for 175 ℃
Min. shrink temperature °C 140°C 155°C
Operating temperature °C -55°C ~150°C -55°C ~175°C
Specific gravity ASTM D792 g/cm3 1.78 1.78
Tensile strength ASTM D2671 M Pa ≥30 ≥34.5
Elongation at break ASTM D2671 % ≥150 ≥150
Elongation at break after aging 225℃,168h % ≥100 ≥50
Heat shock 275℃,4h - -No cracking- -No cracking-
Cold bend -55℃,4h - -No cracking- -No cracking-
Dielectric strength ASTM D2671 kV/mm ≥15.7 ≥31.5
Volume resistance ASTM D257 Ω.cm ≥1013 ≥1013
Flammability UL-224 VW-1 Pass Pass
Features
  • This heat shrink tubing is corrosion resistant, heat resistant, transparent and flame retardant.
  • The semi-rigid heat shrink tubing has a high temperature resistance of up to 175℃.
  • The operating temperature of this heat shrink tubing is -55℃~155℃/-55℃~175℃.
  • The shrink temperature of this heat shrink tubing is 150℃~175℃.
  • The flexible heat shrink tubing is certified by UL224 150℃ 600V.
  • The semi-rigid property of this heat shrink tubing is compliant with AS23053/8 requirements.
  • The operating temperature of the flame retardant heat shrink polyolefin tubing is higher than polyolefin heat shrink tubing, thus allowing this particular heat shrink tubing to be ideal for tough work environments.
