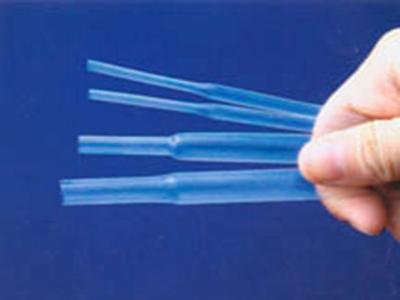

FEP Heat Shrink Tubing

Model: CYG-FEP

Material:
FEP is a copolymer of perfluoroethylene propylene, which has an excellent resistance to high temperatures, low temperatures, diesel and chemical reagents. This FEP heat shrink tubing is designed to provide insulation and stress relief for wire harnesses and to prevent electrical equipment from damage. The FEP heat shrink tubing also works as a clear heat shrink tubing due to its transparency.

Shrink ratio: 2:1

Application

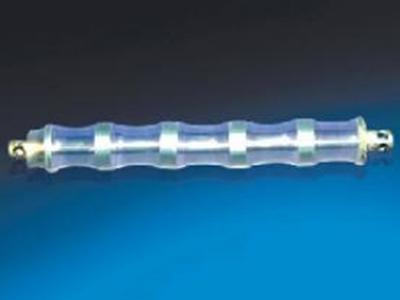

This FEP heat shrink tubing has an excellent resistant to heat, abrasion, adhesives, acid and ultraviolet rays. The FEP heat shrink tubing us also clear, making it ideal for a protection accessory for filters and various tubing frequencies.

Standard: AS23053/11

Size
Size ID as supplied (MM) ID after recovery (MM) Wall after recovery (±0.1) (MM)
0.8 0.8±0.15 0.7 0.2
0.9 0.9±0.15 0.8 0.2
1.1 1.1±0.15 0.7 0.2
1.5 1.6±0.2 1.2 0.2
1.9 2.0±0.2 1.5 0.2
2.0 2.4±0.2 1.8 0.2
3.0 3.2±0.2 2.5 0.2
4.5 4.8±0.2 3.5 0.3
7.0 7.0±0.2 5 0.3
9.0 9.4±0.2 7.2 0.3
10.0 10.0±0.2 8.5 0.3
12.0 12.7±0.2 9.5 0.4
16.0 16.0±0.2 12.3 0.4
18.0 18.0±0.2 13.8 0.4
19.0 19.0±0.2 14.6 0.4

Remarks: Special sizes are available upon request, as is customization service.

Specifications
Items Test methods Specification
Density ASTM D 792 2.12-2.17
Shrink ratio 1.3:1
Operation temperature℃ -67--200
Min. shrink temperature℃ 200
Dielectric Strength ASTM D 2671 ≥ 19.7 kV/mm
Longitudinal change ≥ +10%
Water absorption % ASTM D 570 <0.01%
Tensile strength ASTM D 638 ≥13.8MPa
Elongation ASTM D 638 ≥200%
Volume resistivity ASTM D 876 ≥1017Ω.cm
Low temperature flexibility -65±1℃ No cracking
Aging at 250±3℃, 96hrs Tensile strength ASTM D 638 ≥13.8MPa
Elongation ASTM D 638 ≥200%
Flammability UL224 PASS
Features
  • This heat shrink tubing is climate resistant, high temperature resistant and low temperature resistant. The operating temperature of this heat shrink tubing is -67℃--200℃.
  • This heat shrink tubing has an excellent mechanical performance, including non-stick property, low water absorption, fire resistance and flame retardant. It is also easy to clean.
  • This heat shrink tubing has excellent chemical performances, such as good insulation, friction resistance and non-toxic properties. It also features a stable chemical performance so as to not react chemically with other substances.
