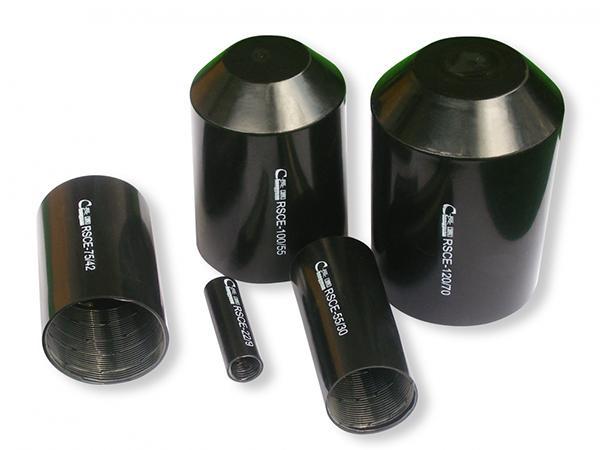

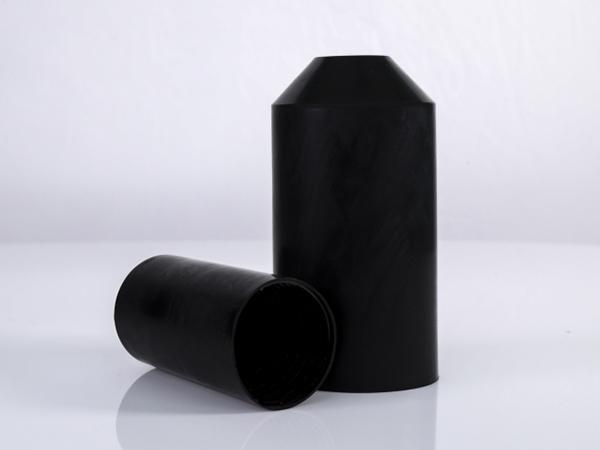

Heat Shrink Cable End Cap

Model: CYG-RSCE

Application
Heat shrink cable end caps feature excellent water resistance and can be widely used in the terminal processing of power cables and communication cables.

Size
Size As supplied (mm) After recovery (mm) Cable range (mm)
I.D. I.D. Wall thickness
RSCE-12/4 ≥12 ≤4 2.5±0.25 4～8
RSCE-15/5 ≥15 ≤5 2.5±0.25 6～12
RSCE-25/8 ≥25 ≤9 2.8±0.25 9～17
RSCE-35/12 ≥35 ≤12 3.0±0.4 18～30
RSCE-55/25 ≥55 ≤25 3.3±0.4 31～45
RSCE-75/35 ≥75 ≤35 3.3±0.4 45～60
RSCE-100/50 ≥100 ≤50 3.9±0.4 61～82
RSCE-120/60 ≥120 ≤60 4.0±0.4 83～100
RSCE-148/57 ≥148 ≤60 4.0±0.4 83～100

VALVE COULD BE SUPPLIED AS REQUEST.

Main technical performance
Items Unit Specifications Test methods
Tensile Strength MPa ≥12 ASTM D2671
Elongation % ≥300 ASTM D2671
120℃、168h heat aging K1＞0.8, K2＞0.7 ASTM D2671
Volume resistance Ω.cm ≥1014 ASTM D2671
Dielectric strength kV/min ≥18 ASTM D2671
Water absorption ≤0.5% ASTM D570
