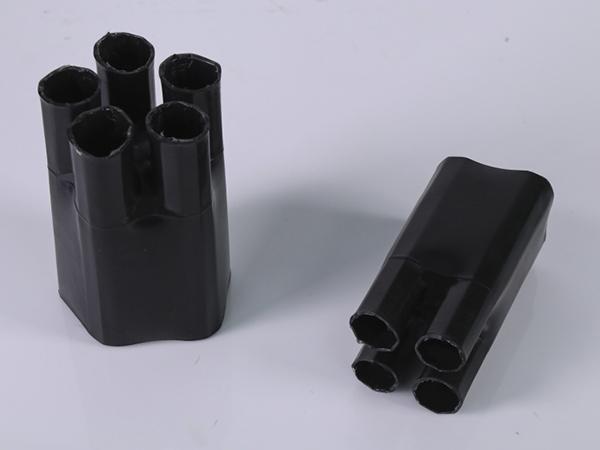

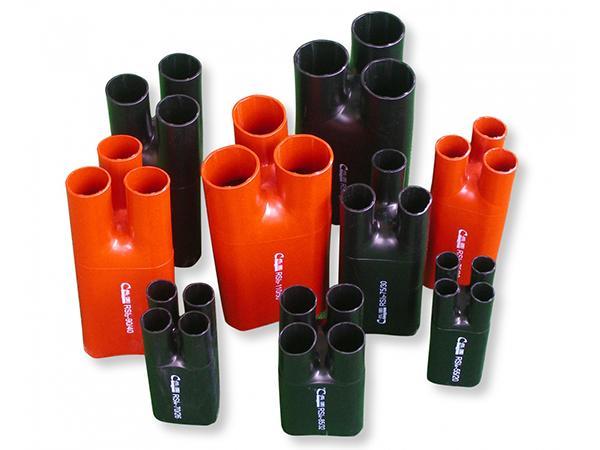

Heat Shrink Breakout Boots

Model: CYG-RSI

Description
Heat shrink breakout boots are designed to ensure the insulation and sealing between different phases. The max. voltage is up to 36kV.

Specifications
size Diameter as supplied(mm) Diameter after recovery (mm) Cable range
Branch Base Base branch
RSI3- 35/15 ≥15 ≥33 ≤20 ≤6
RSI3- 50/25 ≥23 ≥48 ≤21 ≤10
RSI3- 75/30 ≥28 ≥73 ≤34 ≤12 25-50
RSI3- 90/40 ≥38 ≥88 ≤45 ≤16 70-120
RSI3-110/50 ≥48 ≥108 ≤55 ≤19 150-240
RSI3-130/60 ≥58 ≥123 ≤55 ≤27 Above 300
RSI4-35/15 ≥13 ≥36 ≤20 ≤6 10-16
RSI4-55/20 ≥20 ≥52 ≤27 ≤7 25-50
RSI4-70/26 ≥26 ≥68 ≤30 ≤9 70-120
RSI4-85/32 ≥30 ≥85 ≤43 ≤13 150-240 300
RSI4-110/45 ≥44 ≥110 ≤51 ≤14
RSI5-35/10 ≥10 ≥35 ≤19 ≤5 10-16
RSI5-50/15 ≥14 ≥46 ≤25 ≤6 70-120
RSI5-75/25 ≥22 ≥68 ≤31 ≤7 70-120
RSI5-100/35 ≥32 ≥92 ≤43 ≤11 150-240
RSI5-110/55 ≥44 ≥108 ≤55 ≤14 300
Main technical performance
Item Unit Specifications Test method
Tensile strength MPa ≥11 ASTM D2671
elongation at break % ≥300 ASTM D2671
Aging at 120℃ 168h K1>0.8 K2>0.7 ASTM D2671
Volume resistance Ω · cm ≥1014 ASTM D2671
Water absorption ≤0.5% ASTM D570
