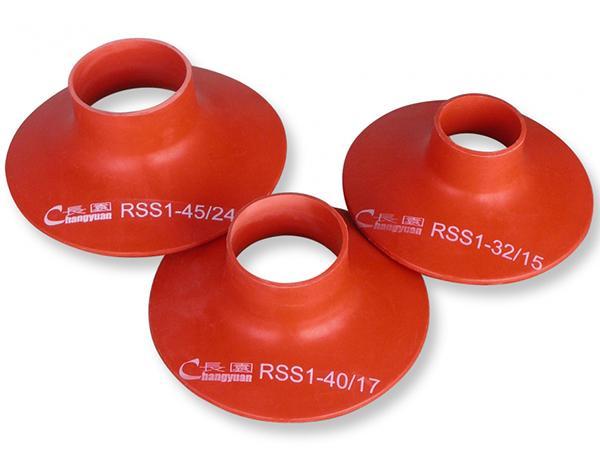

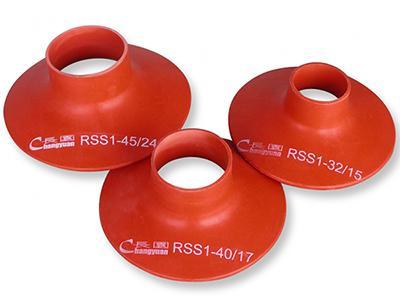

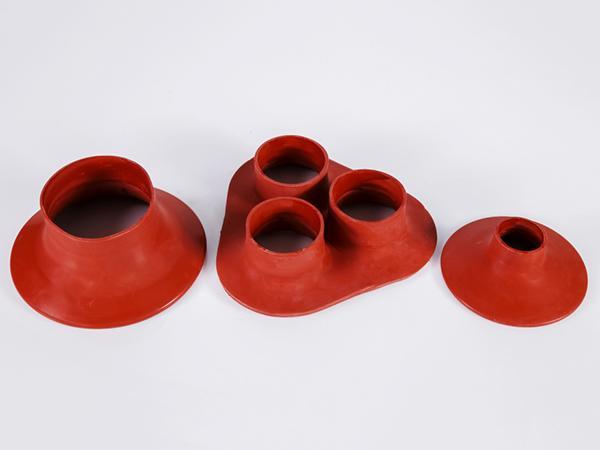

Heat Shrink Rain Shed

Model: CYG-RSS

Application
Heat shrink rain sheds are suitable for outdoor terminals to increase creepage distance due to their great aging resistance, interference resistance, stable performance and easy installation.

Size
Size As supplied ( mm) After recovery (mm) Cable range(mm2)
I.D. I.D. Wall thickness
RSS1—32/15-100 ≥30 ≤13 3.0±0.4 25~50
RSS1—40/17-106 ≥38 ≤15 3.0±0.4 70~120
RSS1—45/24-112 ≥43 ≤18 3.1±0.4 150~240
RSS1—60/38-140 ≥58 ≤38 3.0±0.4 Special design
RSS1—70/38-140 ≥68 ≤38 3.0±0.4
RSS1—80/38-140 ≥78 ≤38 3.0±0.4
RSS1—90/38-140 ≥88 ≤38 3.0±0.4
RSS3—32/15 ≥30 ≤16 3.0±0.4 25~50
RSS3—38/17 ≥36 ≤18 3.1±0.4 70~120
RSS3—45/24 ≥43 ≤24 3.2±0.4 150~240
Main technical performance
Items Unit Specifications Test methods
Tensile strength MPa ≥12.0 ASTM D2671
Elongation at break % ≥300 ASTM D2671
Heat aging at 120℃ 168h K1>0.8 K2>0.7 ASTM D2671
Volume resistance Ω · cm ≥1014 ASTM D2671
Dielectric strength kV/mm ≥20 ASTM D2671
Anti tracking Voltage grade A level ≥3.5 ASTM D2303
Shrink temperature ℃ 120~140
