15kV Heat Shrink Terminations and Cable Joints

15kV heat shrink terminations and cable joints can be used in a variety of harsh environments thanks to their excellent electrical and mechanical properties including waterproof, stress control, insulation, and others.

15kV heat shrink medium Voltage Cable Accessories
Items Indoor/outdoor Termination Joints
Voltage rated 8.7/15kV 8.7/15kV
Partial discharge test at ambient temperature 15kV, < 10pC 15kV, < 10pC
AC withstand voltage test 39kV 5min 39kV 5min
Impulse voltage withstand ±95kV each polarity 10 times ±95kV each polarity 10 times
Partial discharge after Cyclic Aging Test 15kV, < 10pC 15kV, < 10pC
AC withstand voltage after Cyclic Aging Test 23kV,1 5min 39kV 5min

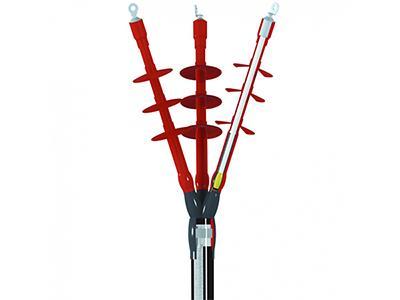

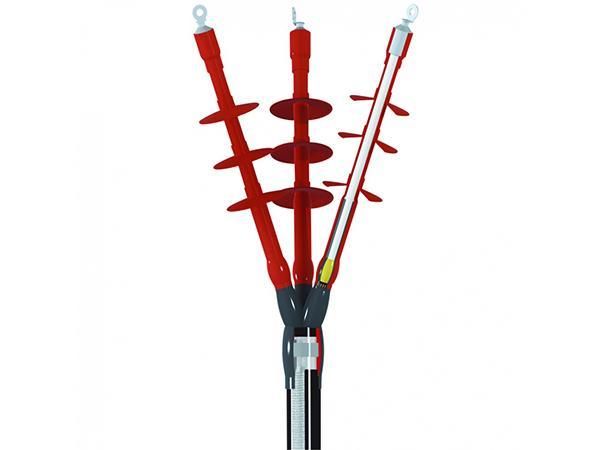

8.7/15kV XLPE cable(1 core) Indoor termination 8.7/15kVRSNY-1/1 25-50
8.7/15kVRSNY-1/2 70-120
8.7/15kVRSNY-1/3 150-240
8.7/15kVRSNY-1/4 300
8.7/15kVRSNY-1/5 400
8.7/15kVRSNY-1/6 500
8.7/15kVRSNY-1/7 630
8.7/15kVRSNY-1/8 800
8.7/15kV XLPE cable(1 core) Outdoor termination 8.7/15kVRSWY-1/1 25-50
8.7/15kVRSWY-1/2 70-120
8.7/15kVRSWY-1/3 150-240
8.7/15kVRSWY-1/4 300
8.7/15kVRSWY-1/5 400
8.7/15kVRSWY-1/6 500
8.7/15kVRSWY-1/7 630
8.7/15kVRSWY-1/8 800

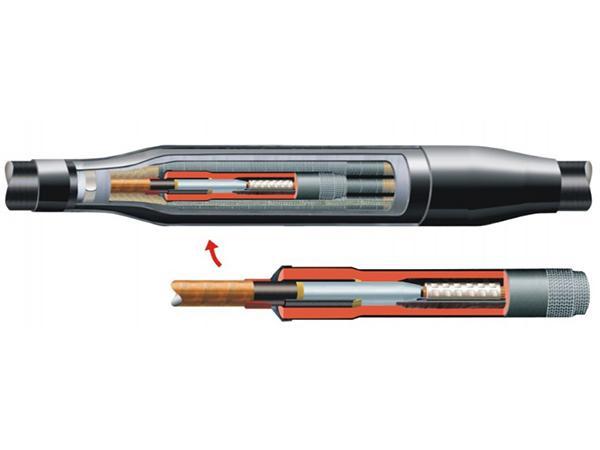

8.7/15kV XLPE cable(1 core) joint 8.7/15kVRSJY-1/1 25-50
8.7/15kVRSJY-1/2 70-120
8.7/15kVRSJY-1/3 150-240
8.7/15kVRSJY-1/4 300
8.7/15kVRSJY-1/5 400-500
8.7/15kVRSJY-1/6 630-800
8.7/15kV XLPE cable(3-core) Indoor termination 8.7/15kVRSNY-3/1 25-50
8.7/15kVRSNY-3/2 70-120
8.7/15kVRSNY-3/3 150-240
8.7/15kVRSNY-3/4 300-400
8.7/15kVRSNY-3/5 500-630
8.7/15kV XLPE cable(3-core) Outdoor termination 8.7/15kVRSWY-3/1 25-50
8.7/15kVRSWY-3/2 70-120
8.7/15kVRSWY-3/3 150-240
8.7/15kVRSWY-3/4 300-400
8.7/15kVRSWY-3/5 500-630
8.7/15kV XLPE cable(3-core) joint 8.7/15kVRSJY-3/1 25-50
8.7/15kVRSJY-3/2 70-120
8.7/15kVRSJY-3/3 150-240
8.7/15kVRSJY-3/4 300
