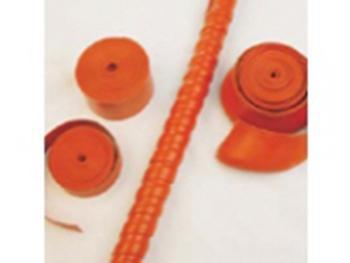

Heat Shrink Insulation Tape

Model: CYG- RSD

Application
Heat shrink insulation tape adopts hot melt adhesive and can be used in the insulation protection of high/low switchgear busbar and to repair power cable sheath damage. Its applicable voltage is 36kV.

Size
Item No. voltage class(kv) Width(mm) Thickness(mm) Packing length(mm)
CYG-RSD-01 1 50 0.40~0.50 5000
CYG-RSD-15 15 50 0.80~1.00 5000
CYG-RSD-36 35 50 1.40~1.80 5000
CYG-RSD-36(S) 35 50 1.40~1.80 5000

REMARKS: CYG-RSD-36(S) IS SPIRAL SHAPE

Specifications
Property Test Method Typical Data
Tensile strength ASTM D 2671 >12 MPa
Ultimate elongation ASTM D 2671 ≥400%
Heat aging Tensile strength Ultimate elongation 136℃, 168 hrs. >10 MPa >450%
Dielectric strength IEC 243 ≥20kV/mm
Dielectric constant IEC 250 ≤3.5
Volume resistance IEC 93 ≥1014Ω .cm
Copper corrosion ASTM D 2671/120℃,168hr. No corrosion
Cold bend ASTM D 2671/-40℃,4hrs. No cracking
Water absorption ASTM D570 < 0.5%
