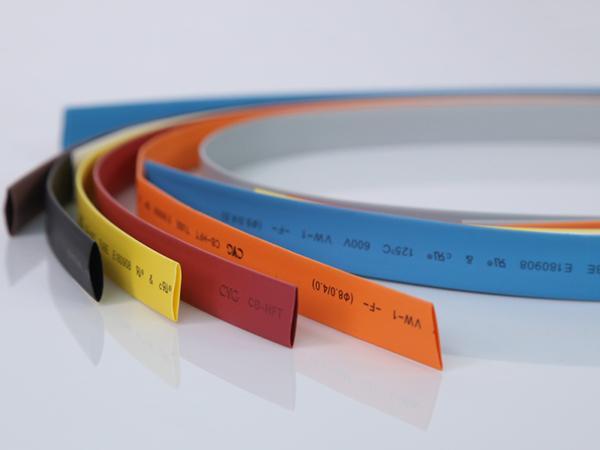

2:1 Heat Shrink Tubing, Military Grade Single Wall Tubing

Model: CB-1000

Material: Irradiated cross-linked modified Polyolefin

Shrink ratio: 2:1

Applications

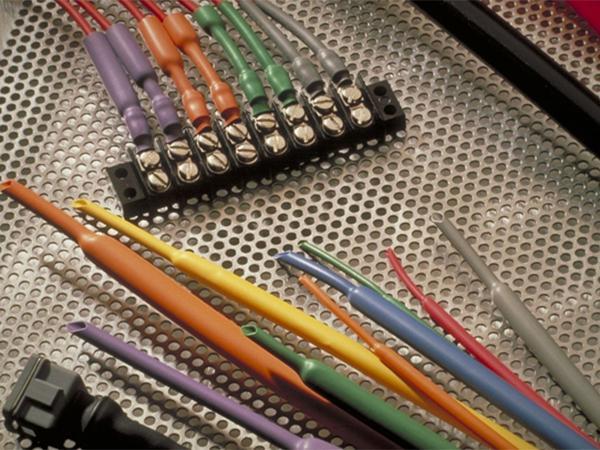

The military quality single wall heat shrink tubing features an excellent insulation performance and oil resistance. It is specially designed to meet requirements for automotive wire harnesses, automotive oil tubing and automotive gas tubing in flame resistant and halogen-free options that are RoHS compliant. This material is very flexible and has an excellent mechanical strength, making it ideal for a wide array of applications in extreme environments and special requirements, including wire protection of automotive wire harness, engines and air conditioning hoses.

Standard: UL224, AS23053/5.

Size
Type Inside diameter Wall thickness after recovery(in mm)
Min. ID as supplied(in mm) Max. ID after recovery (in mm)
CB-1000-101 1.2 0.6 0.41±0.08
CB-1000-102 1.6 0.8 0.43±0.08
CB-1000-103 2.4 1.2 0.51±0.08
CB-1000-104 3.2 1.6 0.51±0.08
CB-1000-105 4.8 2.4 0.51±0.08
CB-1000-106 6.4 3.2 0.64±0.08
CB-1000-107 9.5 4.75 0.64±0.08
CB-1000-108 12.7 6.4 0.64±0.08
CB-1000-109 19.1 9.53 0.76±0.08
CB-1000-110 25.4 12.7 0.89±0.13
CB-1000-111 38.1 19.1 1.02±0.15
CB-1000-112 50.8 25.4 1.14±0.18
CB-1000-113 76.2 38.1 1.27±0.20
CB-1000-114 101.6 50.8 1.4±0.23
Specifications
Item Test method Standard Specifications
Radial shrinkage ASTM D2671 ≥50% 66%
Longitudinal shrinkage ASTM D2671 -5%~+5% -4%
Tensile strength ASTM D638 ≥10.4MPa 14.1MPa
Elongation at break ASTM D638 ≥200% 329%
Aging in circulating-air oven 175.0°C/168h - -
Tensile strength after heat aging ASTM D638 ≥7.3MPa 9.5MPa
Dielectric strength after heat aging ASTM D2671 ≥15.8kV/mm 24kV/mm
Volume resistivity ASTM D876 ≥1.0x10¹²Ω· cm 3.6x10¹²Ω· cm
Fuel resistance SAE-AMS-DTL 23053/5 non-corrosive Pass
Copper corrosion ASTM D2671 No corrosion Pass
Heat shock SAE-AMS-DTL 23053/5 No dripping, cracking, or flowing Pass
Features
  • This heat shrink tubing is AS25053/5 compliant and certified to RoHS standards.
  • The operating temperature of this thin wall shrink tubing is -55℃~135℃ and the shrink temperature range is 100℃~140℃.
  • This thin wall heat shrink tubing has achieved UL125℃ certification and its UL bug voltage is 600V.
