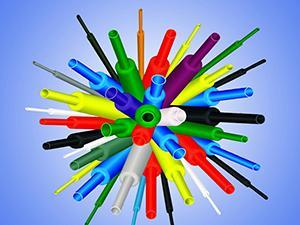

Zero Halogen Heat Shrink Tubing

Model: CB-HFT(600)

Description

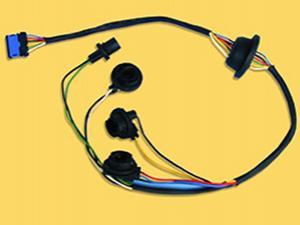

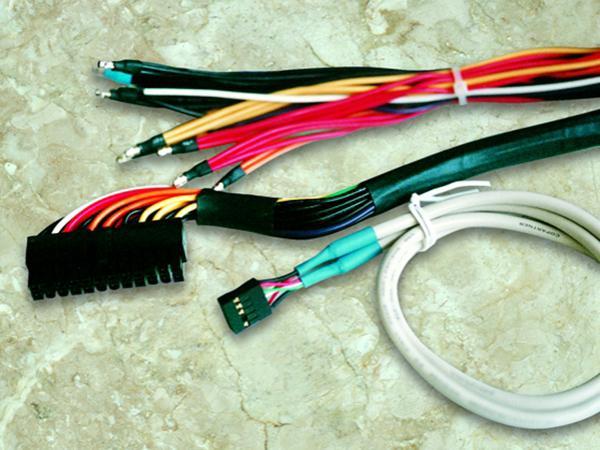

Zero halogen heat shrink tubing is a single-wall tubing manufactured using irradiated cross-linked modified Polyolefin, and features an outstanding insulation, heat resistant, and high voltage resistant performance. It is widely used as insulation protective tubing for wire connectors and wire cables in automotive, electronic, metro, construction, communication and utility fields.

Shrink ratio: 2:1

Size
Size (mm) As supplied (mm) After recovery (mm)
Inside diameter (D) Wall thickness (T) Inside diameter (d) Wall thickness (t)
Ф0.7 1.0+0.2/-0.1 0.18±0.05 ≤0.40 0.32±0.08
Ф0.8 1.2+0.2/-0.1 0.18±0.05 ≤0.45 0.34±0.08
Ф1.0 1.5+0.2/-0.1 0.18±0.05 ≤0.60 0.36±0.08
Ф1.5 2.1+0.2/-0.1 0.18±0.05 ≤0.80 0.36±0.08
Ф2.0 2.5+0.2/-0.1 0.20±0.05 ≤1.00 0.42±0.08
Ф2.5 3.0+0.2/-0.1 0.22±0.05 ≤1.25 0.46±0.08
Ф3.0 3.5+0.2/-0.1 0.22±0.05 ≤1.50 0.46±0.08
Ф3.5 4.0+0.2/-0.1 0.22±0.05 ≤1.75 0.46±0.08
Ф4.0 4.6+0.2/-0.1 0.22±0.05 ≤2.00 0.46±0.08
Ф4.5 5.0+0.2/-0.1 0.23±0.05 ≤2.25 0.46±0.08
Ф5.0 5.5+0.2/-0.1 0.25±0.05 ≤2.50 0.50±0.08
Ф6.0 6.5+0.2/-0.1 0.25±0.05 ≤3.00 0.55±0.10
Ф7.0 7.5+0.2/-0.1 0.25±0.05 ≤3.50 0.55±0.10
Ф8.0 8.5+0.3/-0.1 0.28±0.06 ≤4.00 0.58±0.10
Ф9.0 9.5+0.2/-0.1 0.28±0.06 ≤4.50 0.58±0.10
Ф10 10.5+0.3/-0.1 0.28±0.06 ≤5.00 0.58±0.10
Ф11 11.5+0.3/-0.1 0.28±0.06 ≤5.50 0.58±0.10
Ф12 12.5+0.3/-0.1 0.28±0.06 ≤6.00 0.58±0.10
Ф13 13.5+0.3/-0.1 0.28±0.06 ≤6.50 0.58±0.10
Ф14 14.5+0.3/-0.1 0.28±0.06 ≤7.00 0.58±0.10
Ф15 15.5+0.3/-0.1 0.28±0.06 ≤7.50 0.58±0.10
Ф16 16.5+0.3/-0.1 0.28±0.06 ≤8.00 0.58±0.10
Ф18 18.5+0.3/-0.1 0.32±0.08 ≤9.00 0.68±0.10
Ф20 20.6+0.5/-0.2 0.32±0.08 ≤10.0 0.68±0.10
Ф22 22.6+0.7/-0.2 0.35±0.08 ≤11.0 0.72±0.12
Ф25 25.6+0.7/-0.2 0.40±0.10 ≤12.5 0.78±0.12
Ф28 28.6+0.7/-0.2 0.40±0.10 ≤14.0 0.78±0.12
Ф30 30.6+0.7/-0.2 0.40±0.10 ≤15.0 0.82±0.12
Ф35 35.6+0.7/-0.2 0.45±0.10 ≤17.5 0.92±0.12
Ф40 41.0±0.5 0.50±0.12 ≤20.0 1.00±0.15
Ф50 51.0±1.0 0.55±0.15 ≤25.0 1.10±0.15
Ф60 60.5±1.0 0.60±0.15 ≤30.0 1.25±0.20
Ф70 71.0±1.0 0.60±0.15 ≤35.0 1.25±0.20
Ф80 81.0±1.0 0.60±0.15 ≤40.0 1.25±0.20
Ф90 91.0±1.0 0.60±0.15 ≤45.0 1.25±0.20
Ф100 101.0±1.0 0.60±0.15 ≤50.0 1.25±0.20

Note: Other sizes and colors are available upon special request.

Customization
Dimension: Ф0.7-200mm, and we offer customizable services with special dimensions, colors and wall thicknesses.

Specifications
Test item Test method Specifications
UL operation temperature UL224 125℃
Longitudinal shrinkage ASTM D2671 -5%~+5%
Tensile strength ASTM D638 ≥10.4MPa
Elongation at break ASTM D638 ≥200%
Aging in circulating-air oven 158.0°C/168h -
Tensile strength after heating aging ASTM D638 ≥7.3MPa
Elongation at break after heating aging ASTM D638 ≥100%
UL operation voltage UL224 300V/600V
Volume resistivity ASTM D2671 ≥1.0x10¹² · cm
Dielectric Voltage UL224 2500V(60s), no breakdown
Heat shock UL224/250°C±3°C/4h No dripping, cracking, or flowing
Concentricity ASTM D2671 ≥70%
Features
  • This thin wall heat shrink tubing is halogen free and certified to be environmentally friendly by RoHS, REACH, and SONY standards.
  • This thin wall heat shrink tubing is very flexible and features an excellent elasticity.
  • The flame-retardant rank of this thin wall heat shrink tubing is compliant with UL224 VW-1and F-mark requirements.
  • This thin wall standard heat shrink tubing is certified by UL125℃ (E180908).
