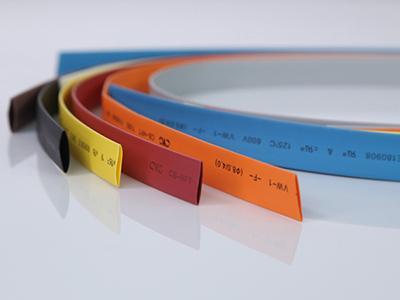

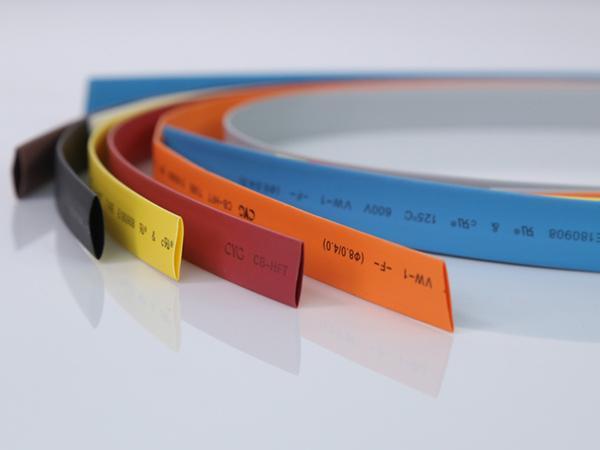

Halogen Free Heat Shrink Tubing, Red Phosphorus Free Tubing

Model: CYG-ZHP

Material: Irradiated cross-linked modified Polyolefin

Shrink ratio: 2:1

Recommended applications

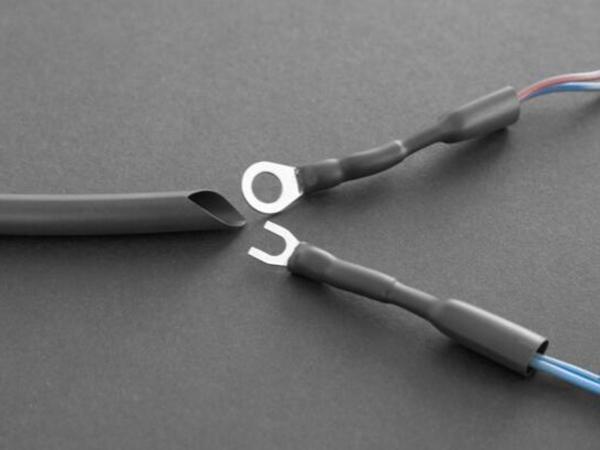

This halogen free heat shrink tubing is a thin single wall, zero red phosphorus tubing. The single wall tubing offers insulation protection and rust prevention for welding applications. This makes the halogen free heat shrink tubing ideal for use in electronic devices with strict requirements for environmentally friendly performances, including tablets, cell phones, and laptops.

Size
Size (mm) As supplied (mm) After recovery (mm)
Inside diameter (D) Wall thickness (T) Inside diameter (d) Wall thickness (t)
Ф0.7 1.0+0.2/-0.1 0.18±0.05 ≤0.40 0.32±0.08
Ф0.8 1.2+0.2/-0.1 0.18±0.05 ≤0.45 0.34±0.08
Ф1.0 1.5+0.2/-0.1 0.18±0.05 ≤0.60 0.36±0.08
Ф1.5 2.1+0.2/-0.1 0.18±0.05 ≤0.80 0.36±0.08
Ф2.0 2.5+0.2/-0.1 0.20±0.05 ≤1.00 0.42±0.08
Ф2.5 3.0+0.2/-0.1 0.22±0.05 ≤1.25 0.46±0.08
Ф3.0 3.5+0.2/-0.1 0.22±0.05 ≤1.50 0.46±0.08
Ф3.5 4.0+0.2/-0.1 0.22±0.05 ≤1.75 0.46±0.08
Ф4.0 4.6+0.2/-0.1 0.22±0.05 ≤2.00 0.46±0.08
Ф4.5 5.0+0.2/-0.1 0.23±0.05 ≤2.25 0.46±0.08
Ф5.0 5.5+0.2/-0.1 0.25±0.05 ≤2.50 0.50±0.08
Ф6.0 6.5+0.2/-0.1 0.25±0.05 ≤3.00 0.55±0.10
Ф8.0 8.5+0.3/-0.1 0.28±0.06 ≤4.00 0.58±0.10
Ф9.0 9.5+0.2/-0.1 0.28±0.06 ≤4.50 0.58±0.10
Ф10 10.5+0.3/-0.1 0.28±0.06 ≤5.00 0.58±0.10
Ф12 12.5+0.3/-0.1 0.28±0.06 ≤6.00 0.58±0.10
Ф15 15.5+0.3/-0.1 0.28±0.06 ≤7.50 0.58±0.10
Ф16 16.5+0.3/-0.1 0.28±0.06 ≤8.00 0.58±0.10
Ф18 18.5+0.3/-0.1 0.32±0.08 ≤9.00 0.68±0.10
Ф20 20.6+0.5/-0.2 0.32±0.08 ≤10.0 0.68±0.10
Ф22 22.6+0.7/-0.2 0.35±0.08 ≤11.0 0.72±0.12
Ф25 25.6+0.7/-0.2 0.40±0.10 ≤12.5 0.78±0.12
Ф28 28.6+0.7/-0.2 0.40±0.10 ≤14.0 0.78±0.12
Ф30 30.6+0.7/-0.2 0.40±0.10 ≤15.0 0.82±0.12
Ф35 35.6+0.7/-0.2 0.45±0.10 ≤17.5 0.92±0.12
Ф40 41.0±0.5 0.50±0.12 ≤20.0 1.00±0.15
Ф50 51.0±1.0 0.55±0.15 ≤25.0 1.10±0.15
Specifications
Item Halogen free tubing CYG-ZHP
Shrink temperature (℃) 120-150
UL operation temperature (℃) 125
Radial shrinkage (%) ≥50
Longitudinal shrinkage(%) ≤±5
Tensile strength (MPa) ≥10.4
Elongation at break (%) ≥200
Aging in circulating-air oven (158±1.0)℃,7days
After aging Tensile strength (MPa) ≥7.3
Elongation at break (%) ≥100
UL operation voltage (V) 600
Volume resistivity (Ω·cm) 1014
Dielectric voltage (V) ≥AC2500V-60S, no breakdown
Dielectric strength (kV/mm) ≥15
Flammability VW-1
Concentricity (%) ≥65
Heat shock 4 hours at 250.0 ± 1.0 °C, no cracking
Cold bend 1 hour at –30 ± 1.0 °C, no cracking
Copper corrosion 24 hours at (95±5)%,2°C, no cracking, no fading
Features
  • This thin wall tubing is a low smoke zero halogen tubing, and meets environmental safety standards for zero halogen and zero red phosphorous according to RoHS and REACH standards.
  • The thin wall heat shrink tubing is flame resistant, and compliant with UL224 VW-1 and UL125℃ (E180908) certifications.
  • This thin wall heat shrink tubing features an outstanding insulation and heat resistant performance, as well as a high voltage resistant performance and a flexible, excellent elasticity.
