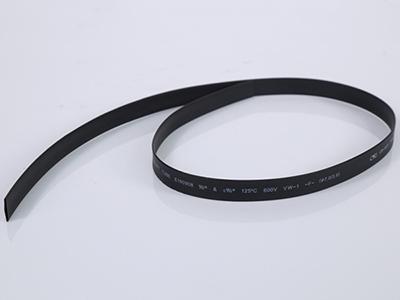

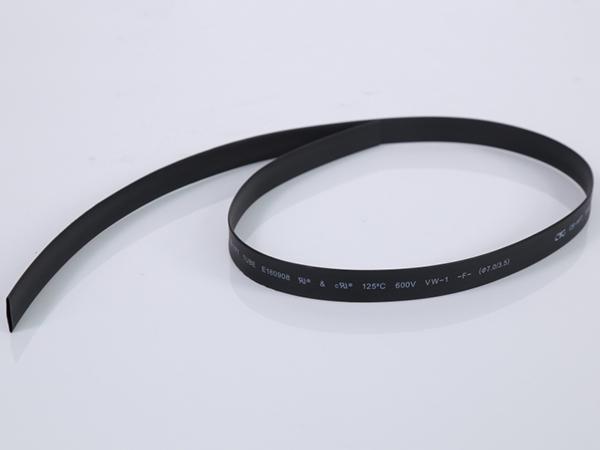

Heat Shrink Tubing, Low Temperature Single Wall Shrink Tubing

Model: CB-HFT (LS)

Material: Irradiated cross-linked modified special polyolefin

Shrink ratio: 2:1

Applications
As a low temperature single wall shrink tubing, this heat shrink tubing is manufactured using irradiated cross-linked modified special polyolefin, and features an excellent insulation and heat resistant performance, as well as an outstanding high voltage resistance. This single wall heat shrink tubing is ideal for temperature sensitive components, and at certain temperatures, will shrink quickly in order to offer protection for said components. This heat shrink tubing can also be used for PVC covered wires and cables.

Size
Size (mm) As supplied (mm) After recovery (mm)
Inside diameter (D) Wall thickness (T) Inside diameter (d) Wall thickness (t)
Ф1.0 1.5+0.2/-0.1 0.18±0.05 ≤0.60 0.36±0.08
Ф1.5 2.1+0.2/-0.1 0.18±0.05 ≤0.80 0.36±0.08
Ф2.0 2.5+0.2/-0.1 0.20±0.05 ≤1.00 0.42±0.08
Ф2.5 3.0+0.2/-0.1 0.22±0.05 ≤1.25 0.46±0.08
Ф3.0 3.5+0.2/-0.1 0.22±0.05 ≤1.50 0.46±0.08
Ф3.5 4.0+0.2/-0.1 0.22±0.05 ≤1.75 0.46±0.08
Ф4.0 4.6+0.2/-0.1 0.22±0.05 ≤2.00 0.46±0.08
Ф4.5 5.0+0.2/-0.1 0.23±0.05 ≤2.25 0.46±0.08
Ф5.0 5.5+0.2/-0.1 0.25±0.05 ≤2.50 0.50±0.08
Ф6.0 6.5+0.2/-0.1 0.25±0.05 ≤3.00 0.55±0.10
Ф7.0 7.5+0.2/-0.1 0.25±0.05 ≤3.50 0.55±0.10
Ф8.0 8.5+0.3/-0.1 0.28±0.06 ≤4.00 0.58±0.10
Ф9.0 9.5+0.2/-0.1 0.28±0.06 ≤4.50 0.58±0.10
Ф10 10.5+0.3/-0.1 0.28±0.06 ≤5.00 0.58±0.10
Ф12 12.5+0.3/-0.1 0.28±0.06 ≤6.00 0.58±0.10
Ф16 16.5+0.3/-0.1 0.28±0.06 ≤8.00 0.58±0.10
Ф18 18.5+0.3/-0.1 0.32±0.08 ≤9.00 0.68±0.10
Ф20 20.6+0.5/-0.2 0.32±0.08 ≤10.0 0.68±0.10
Ф22 22.6+0.7/-0.2 0.35±0.08 ≤11.0 0.72±0.12
Ф25 25.6+0.7/-0.2 0.40±0.10 ≤12.5 0.78±0.12
Ф28 28.6+0.7/-0.2 0.40±0.10 ≤14.0 0.78±0.12
Ф30 30.6+0.7/-0.2 0.40±0.10 ≤15.0 0.82±0.12
Specifications
Item CB-HFT (LS)- zero halogen low temperature thin wall shrink tubing
Shrink temperature (℃) 105
UL operation temperature (℃) 125
Radial shrinkage (%) ≥50
Longitudinal shrinkage(%) ≤5
Tensile strength (MPa) ≥10.4
Elongation at break (%) ≥200
Aging in circulating-air oven (158±1.0)℃,7days
After aging Tensile strength (MPa) ≥7.3
Elongation at break (%) ≥100
UL operation voltage (V) 300
Volume resistivity (Ω·cm) 1014
Dielectric strength (kV/mm) ≥15
Flammability VW-1
Concentricity (%) ≥65
Features
  • The heat shrink tubing will shrink quickly at low temperatures (shrinkage starts at 65°C, and is complete at 95°C) in order to protect temperature sensitive components.
  • This heat shrink thin wall tubing is a low smoke zero halogen tubing, and certified according to RoHS, REACH and SONY standards to be environmentally friendly.
  • The heat shrink tubing is compliant with UL224 VW-1and F-mark requirement, designating its flame resistance.
  • This heat shrink thin wall tubing is UL125℃ (E180908) certified.
