Zero Halogen Heat Shrink Tubing, Yellow/Green Single Wall Tubing

Model: CB-HFT (YG)

Material: Irradiated cross-linked modified Polyolefin

Shrink ratio: 2:1

Applications

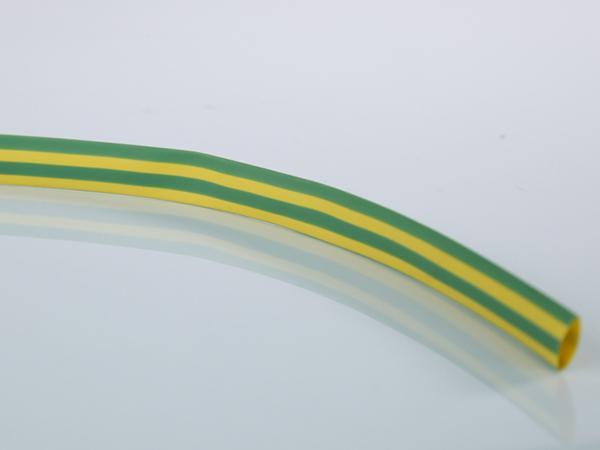

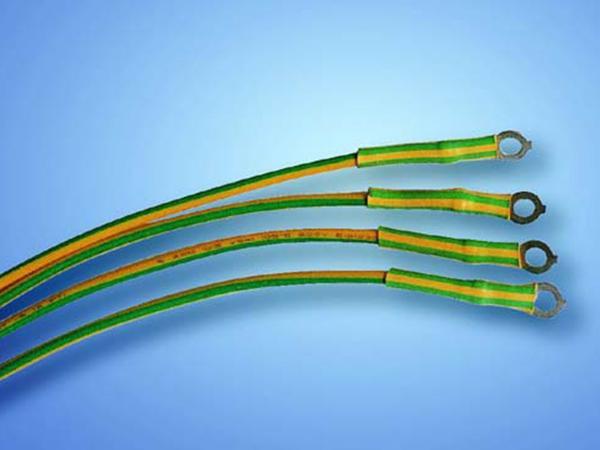

The zero halogen single wall heat shrink tubing is a yellow and green striped heat-shrinkable tubing, widely used as heat shrink marking tubing for yellow and green wire linkage and ground marking.

Size
Size (mm) As supplied (mm) After recovery (mm)
Inside diameter (D) Wall thickness (T) Inside diameter (d) Wall thickness (t)
Ф2.0 2.5+0.2/-0.1 0.20±0.05 ≤1.00 0.42±0.08
Ф2.5 3.0+0.2/-0.1 0.22±0.05 ≤1.25 0.46±0.08
Ф3.0 3.5+0.2/-0.1 0.22±0.05 ≤1.50 0.46±0.08
Ф3.5 4.0+0.2/-0.1 0.22±0.05 ≤1.75 0.46±0.08
Ф4.0 4.6+0.2/-0.1 0.22±0.05 ≤2.00 0.46±0.08
Ф4.5 5.0+0.2/-0.1 0.23±0.05 ≤2.25 0.46±0.08
Ф5.0 5.5+0.2/-0.1 0.25±0.05 ≤2.50 0.50±0.08
Ф6.0 6.5+0.2/-0.1 0.25±0.05 ≤3.00 0.55±0.10
Ф7.0 7.5+0.2/-0.1 0.25±0.05 ≤3.50 0.55±0.10
Ф8.0 8.5+0.3/-0.1 0.28±0.06 ≤4.00 0.58±0.10
Ф9.0 9.5+0.2/-0.1 0.28±0.06 ≤4.50 0.58±0.10
Ф10 10.5+0.3/-0.1 0.28±0.06 ≤5.00 0.58±0.10
Ф12 12.5+0.3/-0.1 0.28±0.06 ≤6.00 0.58±0.10
Ф13 13.5+0.3/-0.1 0.28±0.06 ≤6.50 0.58±0.10
Ф14 14.5+0.3/-0.1 0.28±0.06 ≤7.00 0.58±0.10
Ф15 15.5+0.3/-0.1 0.28±0.06 ≤7.50 0.58±0.10
Ф16 16.5+0.3/-0.1 0.28±0.06 ≤8.00 0.58±0.10
Ф18 18.5+0.3/-0.1 0.32±0.08 ≤9.00 0.68±0.10
Ф20 20.6+0.5/-0.2 0.32±0.08 ≤10.0 0.68±0.10
Ф22 22.6+0.7/-0.2 0.35±0.08 ≤11.0 0.72±0.12
Ф25 25.6+0.7/-0.2 0.40±0.10 ≤12.5 0.78±0.12
Ф28 28.6+0.7/-0.2 0.40±0.10 ≤14.0 0.78±0.12
Ф30 30.6+0.7/-0.2 0.40±0.10 ≤15.0 0.82±0.12
Ф35 35.6+0.7/-0.2 0.45±0.10 ≤17.5 0.92±0.12
Specifications
Test item Test method Specifications
UL operation temperature UL224 125℃
Longitudinal shrinkage ASTM D2671 -5%~+5%
Tensile strength ASTM D638 ≥10.4MPa
Elongation at break ASTM D638 ≥200%
Aging in circulating-air oven 158.0°C/168h -
Tensile strength after heat aging ASTM D638 ≥7.3MPa
Elongation at break after heat aging ASTM D638 ≥100%
UL operation voltage UL224 300V/600V
Volume resistivity ASTM D2671 ≥1.0x10¹² · cm
Dielectric voltage UL224 2500V(60s) , no breakdown
Heat shock UL224/250°C±3°C/4h No dripping, cracking, or flowing
Concentricity ASTM D2671 ≥70%
Features
  • This thin wall heat shrinkable tubing is a low smoke zero halogen tubing, and environmentally friendly, as certified by RoHS, REACH and SONY standards.
  • This tubing is flame resistant and compliant with UL224 VW-1, F-mark and UL125℃ (E180908) certifications.
  • This thin wall heat shrinkable tubing features an excellent insulation, heat resistant and high voltage resistant performance.
