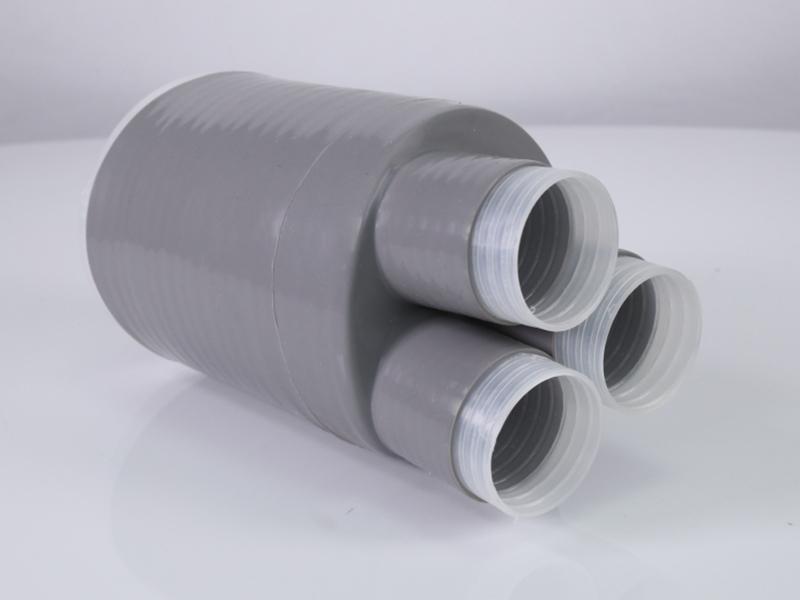

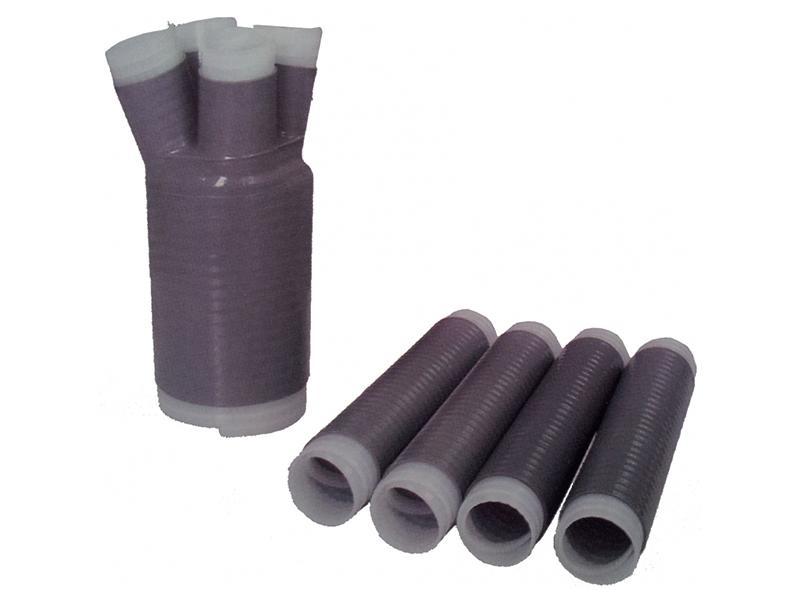

Cold Shrink Breakout Boots

Model: CYG-LSI

Description
Cold shrink breakout boots are used to protect the shielded cable in areas where the phase line bifurcates, and to terminate other damages caused by the environment such as moisture, pollution, corrosion and ozone.

Size
Size Core Base dimension (mm) branch dimension (mm) Cable range(mm2)
ID AS supplied ID After recovery ID AS supplied ID After recovery
85/35 3cores For 15kV 85 34 32 13 25-50
95/50 95 49 38 16 70-120
100/60 105 56 45 20 150-240
110/65 114 63 52 24 300-400
120/75 3 cores for 36kv 122 71 55 25 35-70
135/85 139 83 60 30 95-185
150/90 155 90 70 37 240-400
60/20 4 cores for 1kV 60 18 20 7 25-50
70/25 70 23 26 9 70-120
90/35 90 32 33 13 150-240
100/40 100 38 40 17 300-400
