36kV Cold Shrink Cable Terminations and Joints

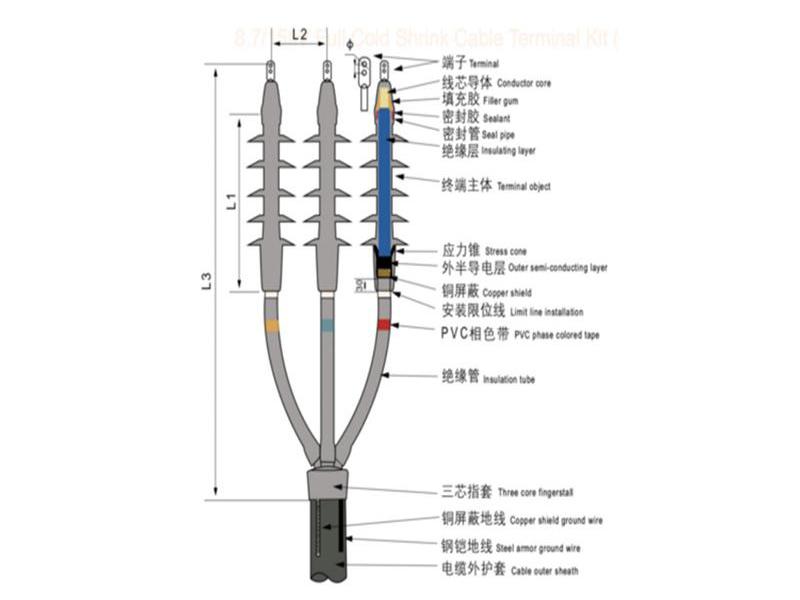

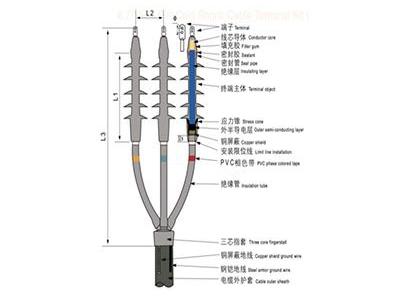

  • Cold Shrink Terminations

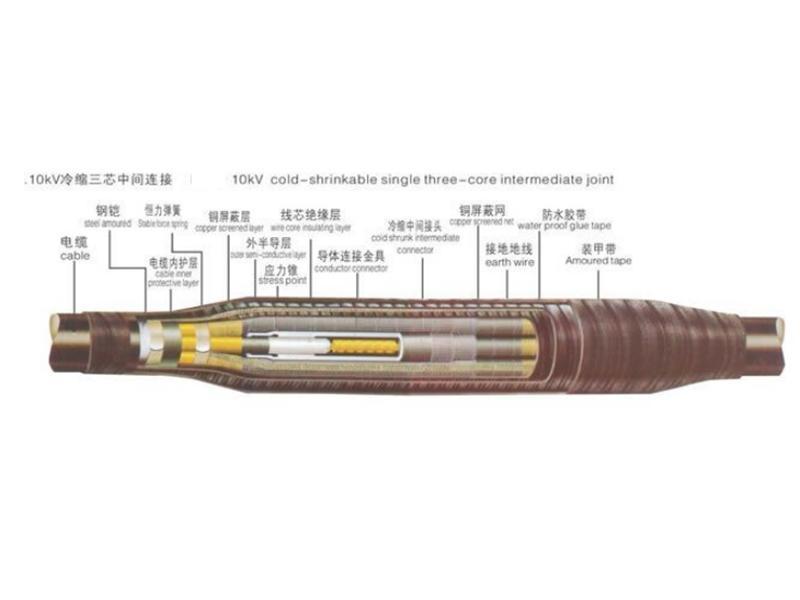

  • Cold Shrink Cable Joints

Description
36kV cold shrink terminations and cable joints are made using high quality liquid silicone rubber and can be used for indoor and outdoor single core and 3-core cables due to good electrical insulation, resistance tracking and high elasticity. The applicable voltage is up to 36kV.

Specifications
Type Size Cable range(mm2)
36Kv indoor termination for 1-core 35kVCDLN-1/1 50-120
35kVCDLN-1/2 150-240
35kVCDLN-1/3 300-630
36Kv outdoor termination for 1-core 35kVCDLW-1/1 50-120
35kVCDLW-1/2 150-240
35kVCDLW-1/3 300-630
36Kv straight joint for 1-core 35kVCDLJ-1/1 50-120
35kVCDLJ-1/2 150-240
35kVCDLJ-1/3 300-630
36Kv indoor termination for 3-core 35kVCDLN-3/1 50-95
35kVCDLN-3/2 120-185
35kVCDLN-3/3 240-400
36Kv outdoor termination for 3-core 35kVCDLW-3/1 50-95
35kVCDLW-3/2 120-185
35kVCDLW-3/3 240-400
36Kv straight joint for 3-core 35kVCDLJ-3/1 50-95
35kVCDLJ-3/2 120-185
35kVCDLJ-3/3 240-400
Specifications
Standard IEC 60502
Voltage classes 18/36kV 18/36 kV
Partial discharge test at ambient temperature 45kV, < 10pC 45kV, < 10pC
AC withstand voltage test 117kV 5min 117kV 5min
Impulse voltage withstand ±200kV each polarity 10 times ±200kV each polarity 10 times
