15kV Cold Shrink Terminations and Cable Joints

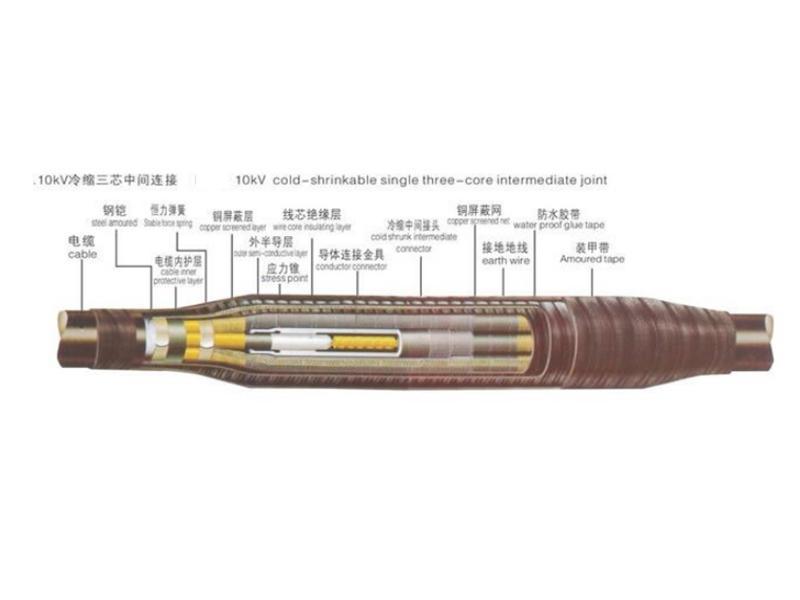

  • Cold Shrink Cable Joints

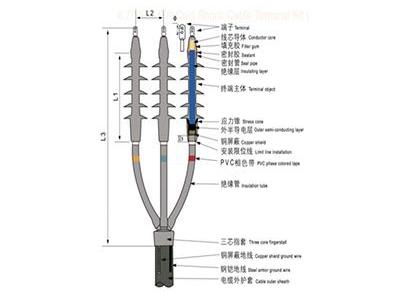

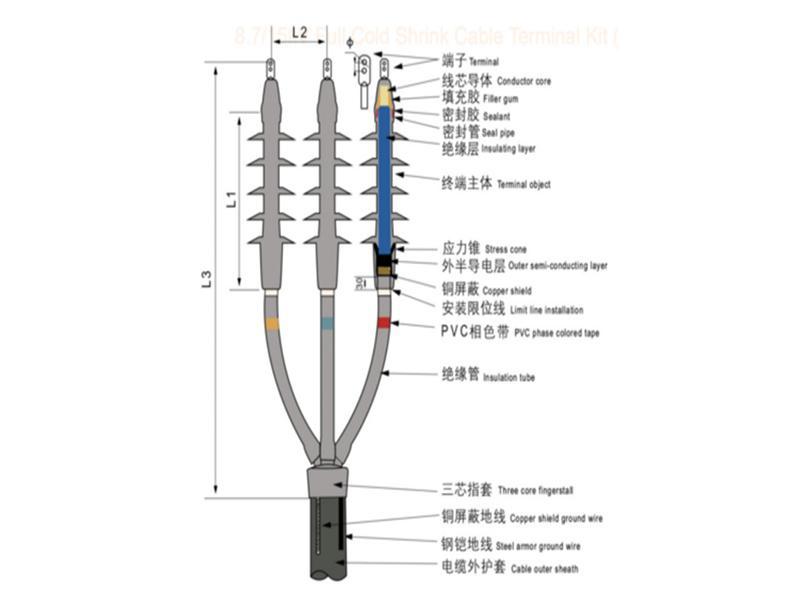

  • Cold Shrink Terminations

Description
15kV cold shrink terminations and cable joints are made of high quality liquid silicone rubber and can be used for indoor and outdoor single core and 3-core cables since they provide good electrical insulation, resistance tracking and high elasticity. The applicable voltage is up to 15kV.

Specifications
Type Size Cable range(mm2)
8.7/15kV XLPE cable(1 core) Indoor termination 8.7/15kVCDLN-1/1 25-50
8.7/15kVCDLN-1/2 70-120
8.7/15kVCDLN-1/3 150-240
8.7/15kVCDLN-1/4 300
8.7/15kVCDLN-1/5 400
8.7/15kVCDLN-1/6 500
8.7/15kVCDLN-1/7 630
8.7/15kVCDLN-1/8 800
8.7/15kV XLPE cable(1core) Outdoor termination 8.7/15kVCDLW-1/1 25-50
8.7/15kVCDLW-1/2 70-120
8.7/15kVCDLW-1/3 150-240
8.7/15kVCDLW-1/4 300
8.7/15kVCDLW-1/5 400
8.7/15kVCDLW-1/6 500
8.7/15kVCDLW-1/7 630
8.7/15kVCDLW-1/8 800
8.7/15kV XLPE cable(1core) Straight joint 8.7/15kVCDLJ-1/1 25-50
8.7/15kVCDLJ-1/2 70-120
8.7/15kVCDLJ-1/3 150-240
8.7/15kVCDLJ-1/4 300
8.7/15kVCDLJ-1/5 400-500
8.7/15kVCDLJ-1/6 630-800
8.7/15kV XLPE cable(3 core) Indoor termination 8.7/15kVCDLN-3/1 25-50
8.7/15kVCDLN-3/2 70-120
8.7/15kVCDLN-3/3 150-240
8.7/15kVCDLN-3/4 300-400
8.7/15kVCDLN-3/5 500-630
8.7/15kVRSWY-3/5 500-630
8.7/15kV XLPE cable(3 core) Outdoor termination 8.7/15kVCDLW-3/1 25-50
8.7/15kVCDLW-3/2 70-120
8.7/15kVCDLW-3/3 150-240
8.7/15kVCDLW-3/4 300-400
8.7/15kVCDLW-3/5 500-630
8.7/15kV XLPE cable(3 core) Straight joint 8.7/15kVCDLJ-3/1 25-50
8.7/15kVCDLJ-3/2 70-120
8.7/15kVCDLJ-3/3 150-240
8.7/15kVCDLJ-3/4 300
Specifications
Standard IEC 60502
Voltage classes 8.7/15kV 8.7/15kV
Partial discharge test at ambient temperature 15kV, < 10pC 15kV, < 10pC
AC withstand voltage test 39kV 5min 39kV 5min
Impulse voltage withstand ±95kV each polarity 10 times ±95kV each polarity 10 times
