24kV Cold Shrink Terminations and Cable Joints

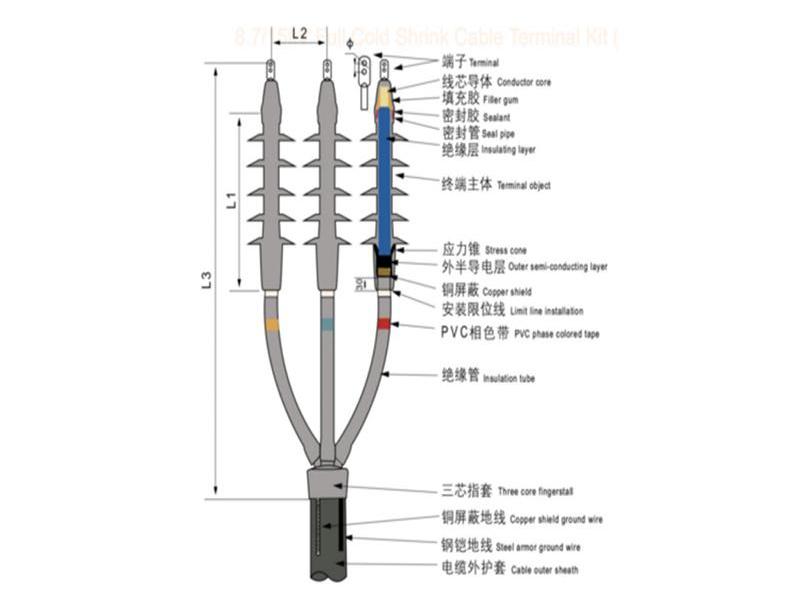

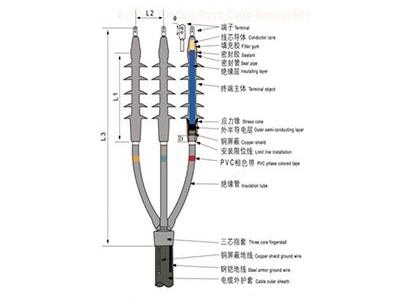

  • Cold Shrink Termination

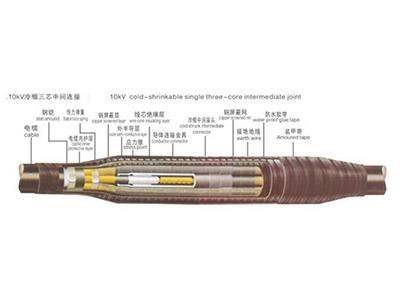

  • Cold Shrink Cable Joint

Description
24kV cold shrink terminations and cable joints are made of high quality liquid silicone rubber and can be used for indoor and outdoor single core and 3-core cables due to their good electrical insulation, resistance tracking and high elasticity. The applicable voltage is up to 24kV.

Specifications
Type Size Cable range(mm2)
12/24kV XLPE cable(1 core) Indoor termination
12/24kVCDLN-1/1 25-50
12/24kVCDLN-1/2 70-120
12/24kVCDLN-1/3 150-240
12/24kVCDLN-1/4 300-400
12/24kV XLPE cable(1core) Outdoor termination 12/24kVCDLW-1/1 25-50
12/24kVCDLW-1/2 70-120
12/24kVCDLW-1/3 150-240
12/24kVCDLW-1/4 300-400
12/24kV XLPE cable(1core) Straight joint 12/24kVCDLJ-1/1 25-50
12/24kVCDLJ-1/2 70-120
12/24kVCDLJ-1/3 150-240
12/24kVCDLJ-1/4 300-400
12/24kV XLPE cable(3 core) Indoor termination 12/24kVCDLN-3/1 25-50
12/24kVCDLN-3/2 70-120
12/24kVCDLN-3/3 150-240
12/24kVCDLN-3/4 300-400
12/24kV XLPE cable(3 core) Outdoor termination 12/24kVCDLW-3/1 25-50
12/24kVCDLW-3/2 70-120
12/24kVCDLW-3/3 150-240
12/24kVCDLW-3/4 300-400
12/24kV XLPE cable(3 core) Straight joint 12/24kVCDLJ-3/1 25-50
12/24kVCDLJ-3/2 70-120
12/24kVCDLJ-3/3 150-240
12/24kVCDLJ-3/4 300
Specification
Standard IEC 60502
Voltage classes 12/24kV 12/24kV
Partial discharge test at ambient temperature 24kV, < 10pC 24kV, < 10pC
AC withstand voltage test 39kV 5min 39kV 5min
Impulse voltage withstand ±95kV each polarity 10 times ±95kV each polarity 10 times
