Cable Marker Tags

Model: CYG-MT(TAG)

Material: Radiation-crosslinked modified polyolefin

Application

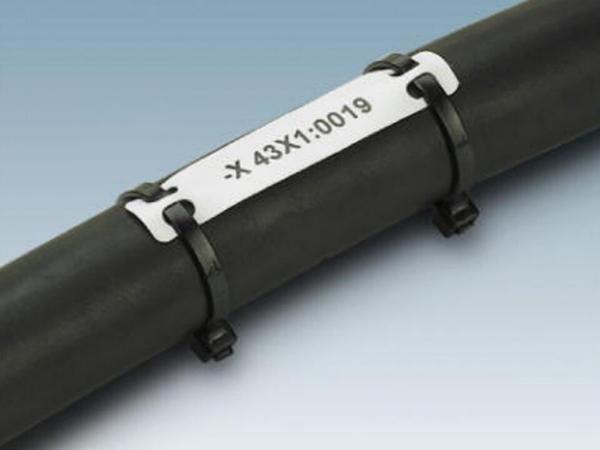

Printable cable label and wire markers, with a product ID of CYG-MT (TAG), is designed to meet the high performance identification requirements for cable manufacturers and is used in environmental temperature ranges of - 40 ℃ to 125 ℃. The print material meet the requirements of SAE-AS-81531MIL-STD-202F standards, and the raw material is resistant to organic solvents, such as fuel oil. After being tightly tied with nylon ties, the label maintains its print performance, even after long term usage.

Specifications
Part Size(W x H) in mm Effective print area in mm
CYG-MT(TAG)-45 x 10.4 45 x 10.4 25 x 10.4
CYG-MT(TAG)-70 x 20.3 70 x 20.3 50 x 20.3

Remarks: other sizes are upon the request

Performance index
Item Test methods Specifications
Tensile Strength SAE-AMS-DTL-23053 ≥10.3MPa
Ultimate Elongation SAE-AMS-DTL-23053 ≥200%
Flexibility SAE-AMS-DTL-23053.4.6.7 -55℃±1℃, 4h, No cracking
Heat Shock at 250℃±3℃ at 4hrs SAE-AMS-DTL-23053.4.6.8 250℃±3℃, 4h, No cracking, dripping, flowing
Aging Performance SAE-AMS-DTL-23053.4.6.9 175℃±2℃, 168h, No visual damage
Tensile Strength After Aging SAE-AMS-DTL-23053.4.6.13 and ASTM D638 ≥6.9MPa，23℃±2℃
Ultimate Elongation After Aging SAE-AMS-DTL-23053.4.6.13 and ASTM D638 ≥100%，23℃±2℃
Color Stability SAE-AMS-DTL-23053.4.6.15 175℃±2℃, 24h, Pass
Dielectric Strength SAE-AMS-DTL-23053.4.6.13 and ASTM D2671 ≥19.7kV/mm,23℃±2℃
Volume Resistance SAE-AMS-DTL-23053.4.6.13 and ASTM D876 ≥1.0x1014Ω· cm,500V (DC),60s
Flammability UL224 Flame resistance
Fluid Resistance AE-AMS-DTL-23053.4.6.11 No visual damage
Print Persistence SAE-AS-81531.4.6.2 50 rubber erasure , identification
Print Solvent Resistance MIL-STD-202G Method 215K 10 rubber erasure , identification

Remarks: other sizes and colors are available upon request.

Specifications
Item Test methods Specifications
Physical performance
Operation temp. - 40 ℃ to 125 ℃
Tensile strength (M Pa) ASTM D2671 ≥10.3Mpa
Ultimate elongation ratio (%) ASTM D2671 ≥200%
Flexibility (-55℃, 4hrs) ASTM D2671 No cracking
Heat shock at 250℃±3℃ at 4hrs ASTM D2671 No cracking, dripping, flowing
Electrical performance
Dielectric strength ASTM D2671 ≥19.7kV/mm
Volume Resistance ASTM D876 ≥1014Ω·cm
Flammability UL224 Flame resistance
Fluid resistance (23℃，24hrs) ASTM D2671 Print identified
After Aging at 175℃±2℃ at 168hrs
Tensile strength (M Pa) ASTM D2671 ≥6.9Mpa
Ultimate elongation ratio (%) ASTM D2671 ≥100%
MIL-M-81531-4.6.2 20 rubber erasure, identification
Print performance
UL 224, 50 Rubber erasure, identification
MIL-M-81531-4.6.2 50 Rubber erasure , identification
MIL-STD-202 30 Rubber erasure, identification
Features
  • Excellent oil resistance.
  • Non shrinkable, and we provide different lengths of nylon tie according to different customer requirements.
  • Print performance meets SAE-AMS-DTL-23053/5 requirements.
  • Various product packaging methods to meet different customer requirements

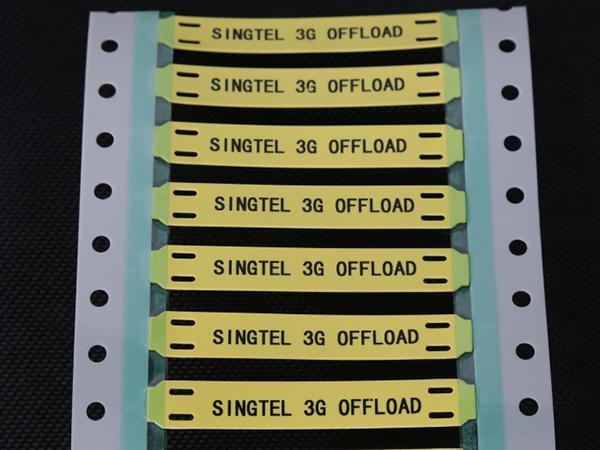

  • Can be printed with a standard dot matrix printer or heat transfer printer.
  • Readable with single-side printing
  • Product color can be customized, but standard colors of white or yellow
  • Great print persistence without any additional steps.
  • Meets the requirements of SAE AS815 31.4.6.2 MIL-STD-202 METHOD215J precision standards for aviation and railways and industrial standard ASTMD2671.
