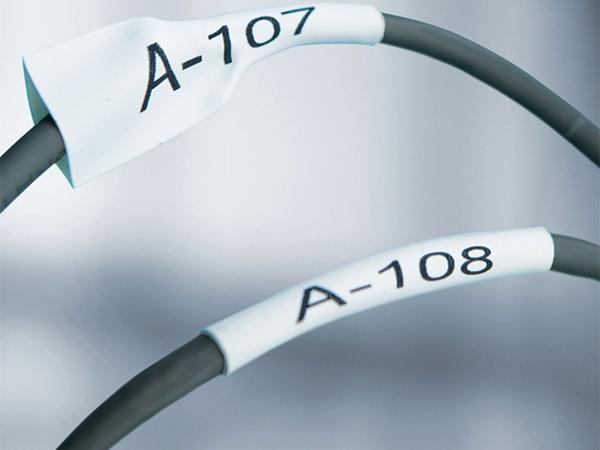

Heat Shrink Wire Marker, Flame Retardant Printable Heat Shrink Tubing

Model: CYG-MT(HX)

Material: Radiation-crosslinked modified polyolefin

Shrink ratio: 2:1, 3:1

Application
Flame retardant printable heat shrink tubing, with a product ID of CYG-MT (HX), features an excellent performance for UV resistance, and is designed to meet high performance identification requirements for cable manufacturers in closed or poorly ventilated environments. The print material of flame retardant printable heat shrink tubing meet the requirements of SAE-AS-81531MIL-STD-202 standards and can be used in an environmental temperature range of - 55 ℃ to 135 ℃. The flame retardant printable heat shrink tubing emits no smoke, is non-toxic, and has an excellent organic solvent and flame resistance.

Specifications
CYG-MT (Shrink ratio: 2:1)
Size As supplied (mm) After recovery (mm) Continuous packing (m/plate) Cassette packing number per roll
Inside diameter (D) Wall thickness (T) Inside diameter (d) Wall thickness (t)
Ф2.4 ≥2.4 0.27±0.05 ≤1.2 0.51±0.08 30 2000
Ф3.2 ≥3.2 0.27±0.05 ≤1.6 0.51±0.08 30 2000
Ф4.8 ≥4.8 0.27±0.05 ≤2.4 0.51±0.08 30 2000
Ф6.4 ≥6.4 0.32±0.06 ≤3.2 0.64±0.08 30 1500
Ф9.5 ≥9.5 0.32±0.06 ≤4.8 0.64±0.08 30 1500
Ф12.7 ≥12.7 0.32±0.06 ≤6.4 0.64±0.08 30 500
Ф19.1 ≥19.1 0.36±0.06 ≤9.5 0.76±0.08 30 500
Ф25.4 ≥25.4 0.45±0.08 ≤12.7 0.89±0.08 30 250
Ф38.1 ≥38.1 0.50±0.08 ≤19.1 1.02±0.15 30 250
Ф50.8 ≥50.8 0.58±0.08 ≤25.4 1.14±0.18 30 250

Remarks: other sizes and color are available upon request.

CYG-MT (Shrink ratio: 3:1)
Size As supplied (mm) After recovery (mm) Continuous packing (m/plate) Cassette packing number per roll
Ф2.4 ≥2.4 0.22±0.05 ≤0.8 0.53±0.08 30 2000
Ф3.2 ≥3.2 0.22±0.05 ≤1.1 0.58±0.08 30 2000
Ф4.8 ≥4.8 0.22±0.05 ≤1.6 0.58±0.08 30 2000
Ф6.4 ≥6.4 0.22±0.05 ≤2.1 0.58±0.08 30 1500
Ф9.5 ≥9.5 0.20±0.05 ≤3.2 0.61±0.08 30 1500
Ф12.7 ≥12.7 0.20±0.05 ≤4.2 0.61±0.08 30 500
Ф19.1 ≥19.1 0.20±0.05 ≤6.4 0.61±0.08 30 500
Ф25.4 ≥25.4 0.20±0.05 ≤8.5 0.64±0.08 30 250
Ф38.1 ≥38.1 0.30±0.06 ≤12.7 1.00±0.15 30 250
Ф50.8 ≥50.8 0.30±0.06 ≤17.0 1.00±0.18 30 250

Remarks: other sizes and colors are available upon request.

Performance index
Item Test methods Specifications
Tensile Strength SAE-AMS-DTL-23053 ≥10.3MPa
Ultimate Elongation SAE-AMS-DTL-23053 ≥200%
Flexibility SAE-AMS-DTL-23053.4.6.7 -55℃±1℃, 4h, No cracking
Heat Shock SAE-AMS-DTL-23053.4.6.8 250℃±3℃, 4h, No cracking, dripping, flowing
Aging Performance SAE-AMS-DTL-23053.4.6.9 175℃±2℃, 168h, No visual damage
Tensile Strength After Aging SAE-AMS-DTL-23053.4.6.13 and ASTM D638 ≥6.9MPa，23℃±2℃
Ultimate Elongation After Aging SAE-AMS-DTL-23053.4.6.13 and ASTM D638 ≥100%，23℃±2℃
Color Stability SAE-AMS-DTL-23053.4.6.15 175℃±2℃, 24h, Pass
Dielectric Strength SAE-AMS-DTL-23053.4.6.13 and ASTM D2671 ≥19.7kV/mm,23℃±2℃
Volume Resistance SAE-AMS-DTL-23053.4.6.13 and ASTM D876 ≥1.0x1014Ω· cm,500V (DC),60s
Flammability SAE-AMS-DTL-23053.4.6.14 and ASTM D2671 UL224 Self-extinguishing within 60s, ≤25% damaged area of print information, no dripping or large area falling
Fluid Resistance AE-AMS-DTL-23053.4.6.11 No visual damage
Print Persistence SAE-AS-81531.4.6.2 50 rubber erasure , identification
Print Solvent Resistance MIL-STD-202G Method 215K 10 rubber erasure , identification
Features
  • Print material meets UL224 and RoHS standards.
  • Print performance meet SAE-AMS-DTL-23053/5 requirements.

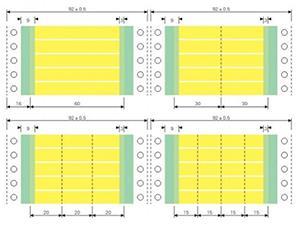

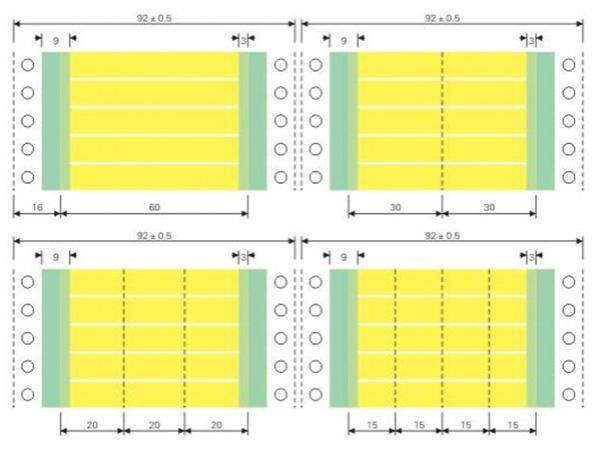

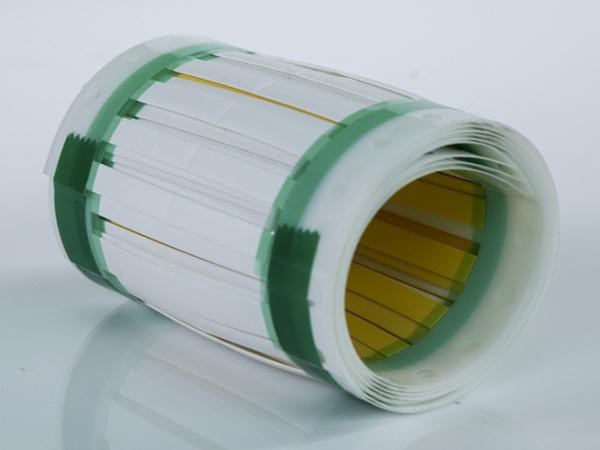

  • Various product packaging methods to meet different customer requirements.
  • Can be printed with a standard dot matrix printer or heat transfer printer.
  • Readable with double-side printed.
  • Product color can be customized, though standard colors are white and yellow
  • Great anti-pollution ability and print persistence.
