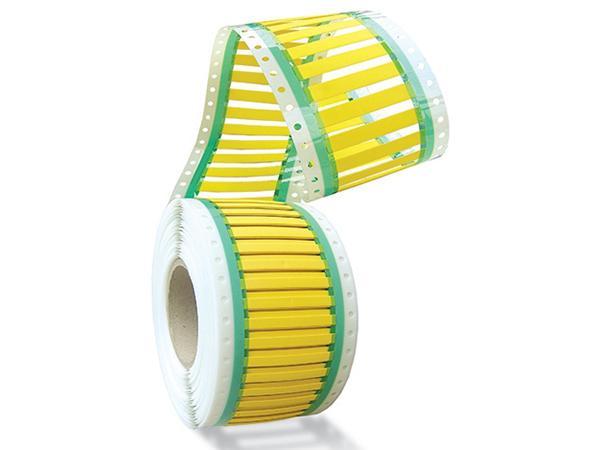

Heat Shrink Wire Marker, Printable Heat Shrink Tubing

Model: CYG-MT

Material: Radiation-crosslinked modified polyolefin

Shrink ratio: 3:1

Application
3:1 printable heat shrink tubing, with a product ID of CYG-MT, is designed to meet the high performance identification requirements for cables and equipment in a variety of manufacturing applications. Because the main material is a radiated cross linked modified polyolefin, it features an excellent abrasion and flame resistance, making it applicable for operation temperature ranges of - 55 ℃ to 135 ℃ for line identification in electrical equipment. The print performance of the material not only meets with SAE-AS-81531.4.6.2 and MIL-STD-202F standards, but is also inflammable and features an outstanding insulation performance. CYG’s 3:1 heat shrink tubing can be double printed and maintains its excellent print performance, even after long term rubbing, or exposure to harsh solvents and oils.

Size
Size (Inch) As supplied After recovery
Inside diameter (mm) Inside diameter (mm) Wall thickness (mm)
3/32 2.4 0.8 0.53±0.08
1/8 3.2 1.07 0.58±0.08
3/16 4.8 1.6 0.58±0.08
1/4 6.4 2.11 0.61±0.08
3/8 9.5 3.2 0.61±0.08
1/2 12.7 4.2 0.61±0.08
3/4 19.1 6.35 0.64±0.08
1 25.4 8.46 0.64±0.08
1-1/2 38.1 12.7 1.0±0.08
2 50.8 16.9 1.0±0.08
Specifications
Item Test methods Specifications
Tensile Strength SAE-AMS-DTL-23053 ≥10.3MPa
Ultimate Elongation Ratio SAE-AMS-DTL-23053 ≥200%
Flexibility SAE-AMS-DTL-23053.4.6.7 -55℃±1℃, 4h, No cracking
Heat Shock SAE-AMS-DTL-23053.4.6.8 250℃±3℃, 4h, No cracking, no dripping, no flowing
Aging Performance SAE-AMS-DTL-23053.4.6.9 175℃±2℃, 168h, No visual damage
Tensile Strength After Aging SAE-AMS-DTL-23053.4.6.13 and ASTM D638 ≥6.9MPa, 23℃±2℃
Ultimate Elongation Ratio After Aging SAE-AMS-DTL-23053.4.6.13 and ASTM D638 ≥100%, 23℃±2℃
Color Stability SAE-AMS-DTL-23053.4.6.15 175℃±2℃, 24h, Pass
Dielectric Strength SAE-AMS-DTL-23053.4.6.13 and ASTM D2671 ≥19.7kV/mm, 23℃±2℃
Volume Resistance SAE-AMS-DTL-23053.4.6.13 and ASTM D876 ≥1.0x1014Ω· cm,500V(DC), 60s
Flammability UL224 Flame resistance
Fluid Resistance AE-AMS-DTL-23053.4.6.11 No visual damage
Print Persistence SAE-AS-81531.4.6.2 50 rubber erasure, identification
Print Solvent Resistance MIL-STD-202G Method 215K 10 rubber erasure, identification
Specifications
Item Test methods Specifications
Physical performance
Operation temp. -55℃~135℃
Tensile strength (M Pa) ASTM D2671 ≥10.3Mpa
Ultimate elongation ratio (%) ASTM D2671 ≥200%
Flexibility (-55℃, 4hrs) ASTM D2671 No cracking
Heat shock at 250℃±3℃ at 4hrs ASTM D2671 No cracking, no dripping, no flowing
Electrical performance
Dielectric strength ASTM D2671 ≥19.7kV/mm
Volume Resistance ASTM D876 ≥1014Ω·cm
Flammability UL224 Flame resistance
Fluid resistance (23℃, 24hrs) ASTM D2671 Print identified
After Aging at 175℃±2℃ at 168hrs
Tensile strength (MPa) ASTM D2671 ≥6.9Mpa
Ultimate elongation ratio (%) ASTM D2671 ≥100%
MIL-M-81531-4.6.2 20 rubber erasure, identification
Print performance
UL 224, 50 Rubber erasure , identification
MIL-M-81531-4.6.2 50 Rubber erasure , identification
MIL-STD-202 30 Rubber erasure, identification
Features of 3:1 Printable Heat Shrink Tubing
  • The print material meets UL224 and halogen-free environmental standards.
  • Print performance meet AS23053/5 requirements.

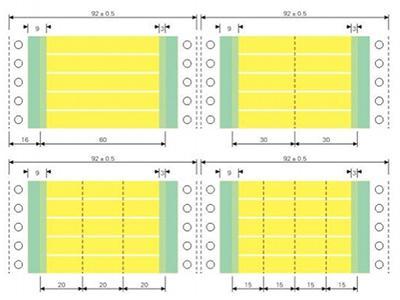

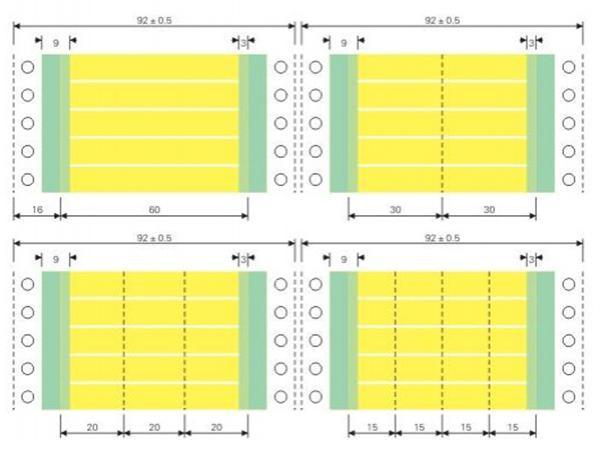

  • Various product packaging methods to meet different customer requirements.
  • Can be printed with a standard dot matrix printer or heat transfer printer.
  • Readable with double-side printing
  • Product color can be customized, with standard colors of white and yellow
  • Great anti-pollution ability and print persistence.
