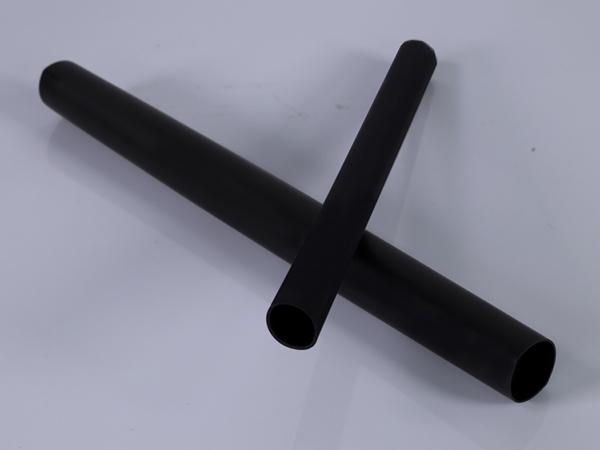

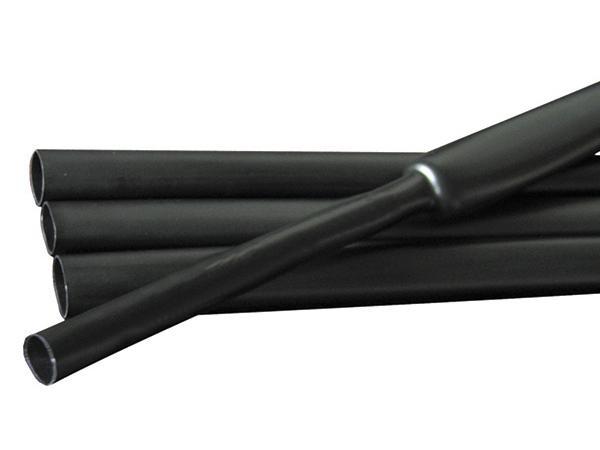

Adhesive Lined Heavy Wall Heat Shrink Tubing

Model: CYG-HWTA

Material
Exterior layer: irradiated cross-linked modified polyolefin
Inner layer: hot-melt adhesive

Shrink ratio: 3.5:1, 4:1

Size
Size As supplied After recovery Standard length
Min. inside Diameter Max. inside Diameter Min. wall thickness
9/3 9 3 2.0 1.22m/pcs
13/4 12 4 2.4 1.22m/pcs
16/5 16 5 2.5 1.22m/pcs
19/5 19 5 2.5 1.22m/pcs
22/6 22 6 2.7 1.22m/pcs
33/8 33 8 3.2 1.22m/pcs
40/12 40 12 4.0 1.22m/pcs
45/12 45 12 4.0 1.22m/pcs
55/16 55 16 4.0 1.22m/pcs
65/19 65 19 4.0 1.22m/pcs
75/22 75 22 4.0 1.22m/pcs
80/22 80 22 4.0 1.22m/pcs
85/25 85 25 4.2 1.22m/pcs
95/30 95 30 4.2 1.22m/pcs
115/34 115 34 4.2 1.22m/pcs
130/36 130 36 4.2 1.22m/pcs
140/37 140 37 4.2 1.22m/pcs
160/50 160 50 4.2 1.22m/pcs
180/50 180 50 4.2 1.22m/pcs
200/60 200 60 4.2 1.22m/pcs
Specifications
Item Test method Specifications
Continuous operating temperature IEC216 -55℃~110℃
Tensile strength ASTM D2671 ≥14MPa
Elongation at break ASTM D2671 ≥400%
Tensile strength after aging ASTM D2671(150℃, 168h) ≥12MPa
Elongation at break after aging ASTM D2671(150℃, 168h) ≥300%
Volume resistivity IEC93 ≥1.0x1014 Ω· cm
Dielectric strength IEC243 ≥20kV/mm
Copper stability ASTM D2671 Pass
Longitudinal shrinkage UL224 0~10%
Concentricity ASTM D2671 ≥65%
Cracking resistance ASTM D1693 (50℃) No cracking
Water absorption ISO62(23℃, 14 days) ≤0.2%
Adhesive
Softening point ASTM DE28 85℃
Peel strength (PE) DIN30672 ≥4N/cm
Copper stability ASTM D2671 Non-corrosive
Resistance to fungus and decay ISO846 Pass
Features
  • This dual wall shrink tubing has higher shrink ratios, allowing it to contain wires in a variety of sizes.
  • This dual wall heat shrink tubing is covered in a layer of black, giving it an excellent UV resistance.
  • This dual wall heat shrink tubing is manufactured from semi-rigid heavy wall polyolefin, providing excellent insulation and mechanical protection.
  • The minimum full recovery temperature of this dual wall heat shrink tubing is 135℃. When the environmental temperature is higher than 135℃, the shrinking time will be reduced.
