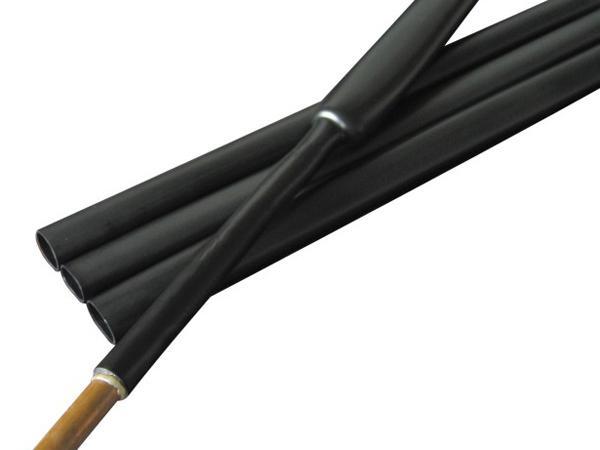

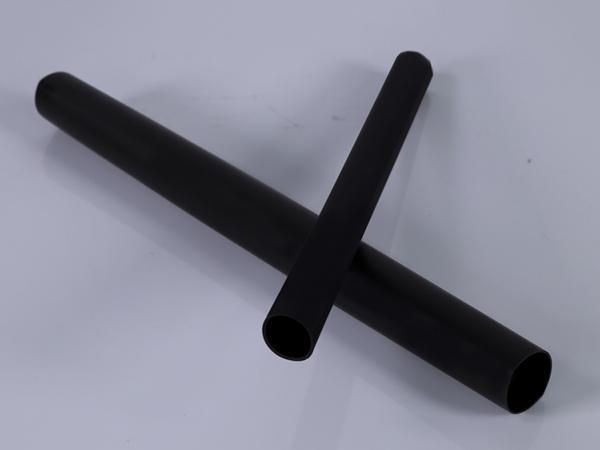

Adhesive Lined Medium Wall Heat Shrink Tubing

Model: CYG-MWTA

Material
Exterior layer: irradiated cross-linked modified polyolefin
Inner layer: hot-melt adhesive

Shrink ratio: 3.5:1, 4:1

Applications
This medium wall polyolefin heat shrink tubing has an excellent insulation and mechanical protection performance. The tubing has higher shrink ratios to make it suitable for splicing of accessories and wires in a wide range of sizes. This heat shrink tubing also features a thicker wall, allowing it to offer insulating and mechanical protection for connectors in medium and high voltage cables. In addition, the hot melt adhesive inner layer offers a water resistant seal for all connecting accessories.

Size
Size As supplied After recovery Standard length
Min. inside Diameter Max. inside Diameter Min. wall thickness
8/2 8 2 1.7 1.22m/pcs
12/3 10 3 2.0 1.22m/pcs
13/4 13 4 2.0 1.22m/pcs
16/5 16 5 2.2 1.22m/pcs
19/5 19 5 2.2 1.22m/pcs
22/6 22 6 2.5 1.22m/pcs
28/6 28 6 2.5 1.22m/pcs
33/8 33 8 2.5 1.22m/pcs
40/12 40 12 2.7 1.22m/pcs
45/12 45 12 2.7 1.22m/pcs
55/16 55 16 2.8 1.22m/pcs
65/19 65 19 2.8 1.22m/pcs
75/22 75 22 3.0 1.22m/pcs
85/25 85 25 3.0 1.22m/pcs
95/25 95 25 3.0 1.22m/pcs
115/34 115 34 3.2 1.22m/pcs
140/42 140 42 3.3 1.22m/pcs
160/50 160 50 3.3 1.22m/pcs
180/50 180 58 3.3 1.22m/pcs
205/65 205 65 3.3 1.22m/pcs
Specifications
Item Test method Specifications
Continuous operating temperature IEC216 -55℃~110℃
Tensile strength ASTM D2671 ≥14MPa
Elongation at break ASTM D2671 ≥400%
Tensile strength after aging ASTM D2671(150℃，168h) ≥12MPa
Elongation at break after aging ASTM D2671(150℃，168h) ≥300%
Volume resistivity IEC93 ≥1.0x1014 Ω· cm
Dielectric strength IEC243 ≥20kV/mm
Copper stability ASTM D2671 Pass
Longitudinal shrinkage UL224 0~10%
Concentricity ASTM D2671 ≥65%
Cracking resistance ASTM D1693 (50℃) No cracking
Water absorption ISO62(23℃，14天) ≤0.2%
Adhesive
Softening Point ASTM DE28 85℃
Peel Strength (PE) DIN30672 ≥4N/cm
Copper stability ASTM D2671 Non-corrosive
Resistance to fungus and decay ISO846 Pass
Specifications
Test item Test method Specifications
Operation temperature IEC 216 -55℃-110℃
Shrink temperature Company standard 120℃
Longitudinal change UL224 0~5%
Tensile strength ASTM D2671 ≥14MPa
Elongation ASTM D2671 ≥400%
Elongation after aging (168hrs at 150℃±2℃) ASTM D2671 ≥300%
Tensile strength after aging (168hrs at 150℃±2℃) ASTM D2671 ≥12MPa
Dielectric strength IEC 243 ≥20kV/mm
Volume resistivity IEC 93 ≥1X1014Ω.cm
Copper corrosion ASTM D2671 No corrosion
Water absorption ISO62，23℃， 14days ≤0.2%
Features
  • This dual wall heat shrink tubing is covered in a black layer, thus giving it an excellent UV resistance.
  • The minimum full recovery temperature of this dual wall heat shrink tubing is 135℃. When the environmental temperature is higher than 135℃, the shrinking time will be reduced.
