Heat Shrink Optical Fiber Splice Protector
Model: CYG-OFS
Operating temperature: -55℃~105℃
Minimum shrink temperature: 80℃
Minimum full recovery temperature: 120℃
Description

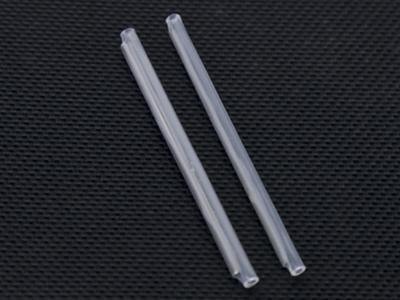

The heat shrink optical fiber splice protector is a transparent shrink tubing manufactured primarily using polyolefin. The transparency makes it easy for users to determine the optical fiber splice, and it is easy to operate. This reduces the risk of any operating damage to the optical fiber, and has very little impact on the optical properties. The sealed structure ensures a high splice temperature and moisture resistance.
| Properties | Test Method | Typical Data |
| Tensile Strength | ASTM D2671 | ≥18 MPa |
| Ultimate Elongation | ASTM D2671 | 700% |
| Density | ISO R1183D | 0.94 g/cm3 |
| Dielectric Strength | IEC 243 | 20 kV/mm |
| Dielectric Constant | IEC 243 | 2.5max |

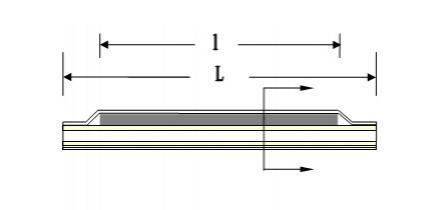

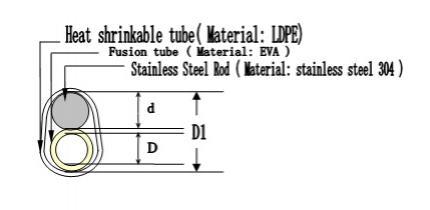

| Splice protector | Fusion tube | Steel rod | O.D. after recovered | ||||
| Part No. | O.D | Length | I.D | Length | O.D | Length | |
| D1 | L | D | L | d | l | ||
| Larger sleeves | |||||||
| CYG-OFSP-60 | 3 | 60 | 1.2 | 60 | 1.5 | 55 | 2.8 |
| CYG-OFSP-60-a | 3 | 60 | 1.2 | 60 | 1.5 | 56 | 2.8 |
| CYG-OFSP-60-c | 3 | 60 | 1.2 | 60 | 1.5 | 58 | 2.8 |
| CYG-OFSP-45 | 3 | 45 | 1.2 | 45 | 1.5 | 40 | 2.8 |
| CYG-OFSP-45-a | 3 | 45 | 1.2 | 45 | 1.5 | 41 | 2.8 |
| CYG-OFSP-45-c | 3 | 45 | 1.2 | 45 | 1.5 | 43 | 2.8 |
| CYG-OFSP-23 | 3 | 23 | 1.2 | 23 | 1.5 | 18 | 2.8 |
| Splice protector | Fusion tube | Steel rod | O.D. after recovered | ||||
| Part No. | O.D | Length | I.D | Length | O.D | Length | |
| D1 | L | D | L | d | l | ||
| Special sleeves | |||||||
| CYG-OFSP-60S | 2.7 | 60 | 1.2 | 60 | 1.2 | 55 | 2.6 |
| CYG-OFSP-45S | 2.7 | 45 | 1.2 | 45 | 1.2 | 40 | 2.6 |
| CYG-OFSP-40S | 2.7 | 40 | 1.2 | 40 | 1.2 | 35 | 2.6 |
| Splice protector | Fusion tube | Steel rod | O.D. after recovered | ||||
| Part No. | O.D | Length | I.D | Length | O.D | Length | |
| D1 | L | D | L | d | l | ||
| CYG-OFSP-60T | 2.5 | 60 | 1.2 | 60 | 1 | 55 | 2.5 |
| CYG-OFSP-60T-a | 2.5 | 60 | 1.2 | 60 | 1 | 56 | 2.5 |
| CYG-OFSP-60T-c | 2.5 | 60 | 1.2 | 60 | 1 | 58 | 2.5 |
| CYG-OFSP-45T | 2.5 | 45 | 1.2 | 45 | 1 | 40 | 2.5 |
| CYG-OFSP-45T-a | 2.5 | 45 | 1.2 | 45 | 1 | 41 | 2.5 |
| CYG-OFSP-45T-c | 2.5 | 45 | 1.2 | 45 | 1 | 43 | 2.5 |
| CYG-OFSP-40T | 2.5 | 40 | 1.2 | 40 | 1 | 35 | 2.5 |
| Splice protector | Fusion tube | Steel rod | O.D. after recovered | ||||
| Part No. | O.D | Length | I.D | Length | O.D | Length | |
| D1 | L | D | L | d | l | ||
| Mini/micro sleeves | |||||||
| CYG-OFSP-40M | 1.1 | 40 | 0.4 | 40 | 0.5 | 39.5 | 1.2 |
| CYG-OFSP-35M | 1.1 | 35 | 0.4 | 35 | 0.5 | 34.5 | 1.2 |
| CYG-OFSP-30M | 1.1 | 30 | 0.4 | 30 | 0.5 | 29.5 | 1.2 |
| CYG-OFSP-25M | 1.1 | 25 | 0.4 | 25 | 0.5 | 24.5 | 1.2 |
| CYG-OFSP-20M | 1.1 | 20 | 0.4 | 20 | 0.5 | 19.5 | 1.2 |
| CYG-OFSP-18M | 1.1 | 18 | 0.4 | 18 | 0.5 | 17.5 | 1.2 |
| CYG-OFSP-15M | 1.1 | 15 | 0.4 | 15 | 0.5 | 14.5 | 1.2 |
| CYG-OFSP-10M | 1.1 | 10 | 0.4 | 10 | 0.5 | 9.5 | 1.2 |
