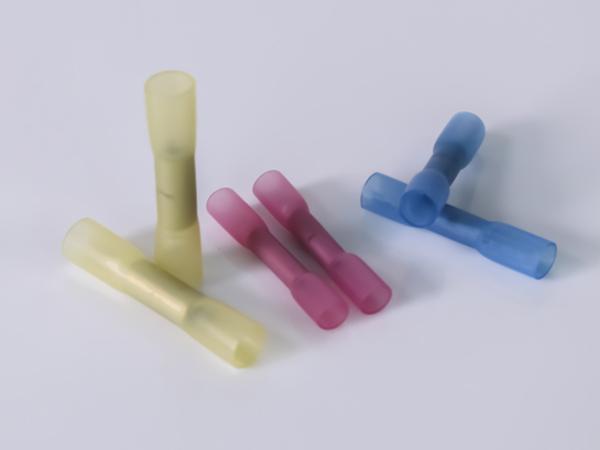

Heat Shrink Butt Connector

Model: CYG-DS 406

Material
Exterior layer: irradiated cross-linked modified polyolefin
Inner layer: hot-melt adhesive
This heat shrink tubing is connected by tinned copper tubing.

Shrink ratio: 4:1

Applications

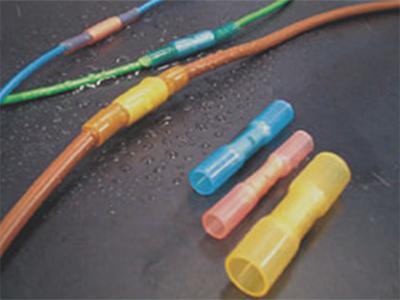

The heat shrink butt connector features an outstanding insulating, waterproof and moisture resistant performance, and is also able to protect against corrosion caused by salt spray, fluid, and moisture. This heat shrink butt connector can also protect wiring linkages, electronic machines and related accessories against water, and protect anywhere that requires a higher friction resistant and mechanical strength. The operating temperature of this heat shrink butt connector is -55℃~+125℃.

Size
Part No. Butt splice dimensions Color Conductor Wire dimensions
A Min. L Nom. Insulation O.D. (Min.) Insulation O.D. (Min.)
DS406-001 3.68 31.75 Red 22-18 3.56 1.40
DS406-002 4.57 31.75 Blue 16-14 4.45 2.03
DS406-003 6.35 38.10 Yellow 12-10 6.22 2.79
Selection guide
Wire size AWG mm2 Part No. Color
22-18 0.38-0.95 CYG-DS-1 Red
16-14 1.2-2.5 CYG-DS-2 Blue
Specifications
Item Specifications
Operating temperature 55°C to 125°C
Shrink ratio 4:1
Cut-Through resistance: 31 kg
Flammability Non flame retardant
Wire pullout after crimping and recovery red: 11.3 kg , blue: 22.7 kg, yellow: 27.2 kg
Solvent resistance: isopropyl alcohol, trichloroethylene, gasoline, battery acid, diesel fuel, motor oil, antifreeze, brake fluid, 5% salt water
Dielectric strength: 2500 V (AC) Insulation resistance: 1000 megohm at 100 V (DC)
